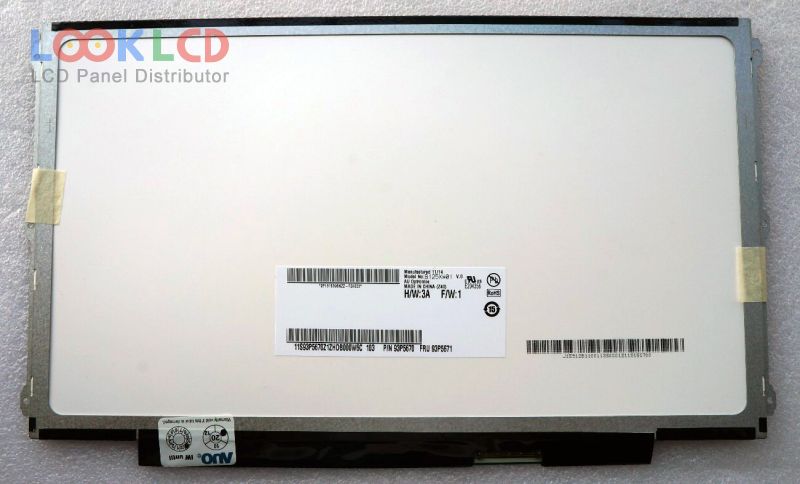

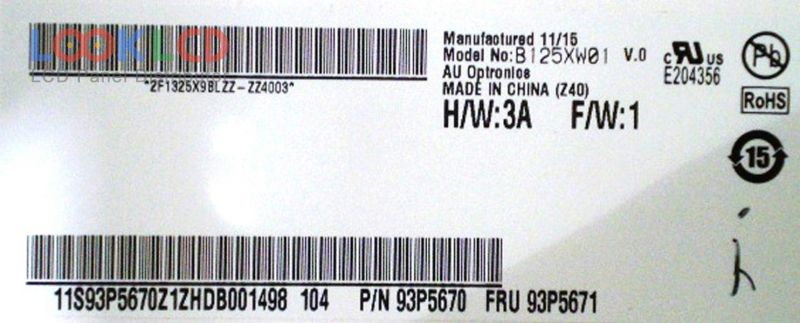

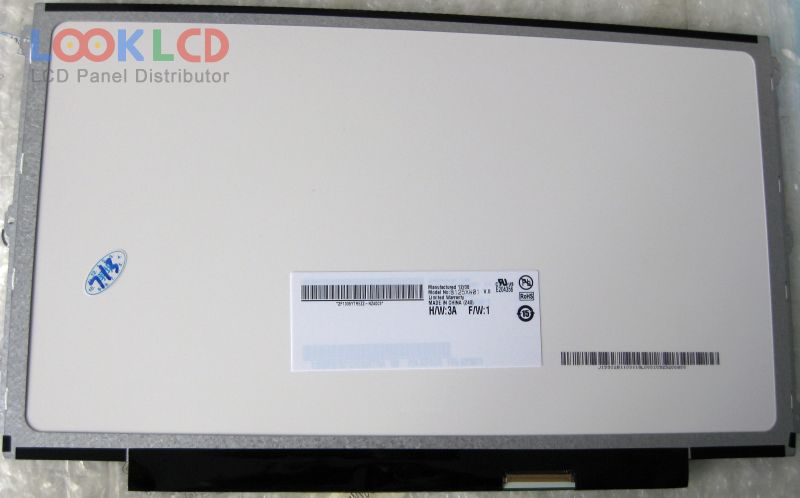

| Varenummer | B125XW01 V0 |
| Mærke | AUO |
| Størrelse | 12.5 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B125XW01 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.5 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 276.615×155.52 mm |
| omrids | 300.4×179.5×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| overflade | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B125XW01 V0 | AUO | 12.5 | 1366×768 |
| B125XW02 V0 | AUO | 12.5 | 1366×768 |
| LP125WF1-SPA2 | LG Display | 12.5 | 1920×1080 |
| LP125WF1-SPD1 | LG Display | 12.5 | 1920×1080 |
| LP125WH2-SLB2 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SLB3 | LG Display | 12.5 | 1366×768 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LP125WH2-TLD1 | LG Display | 12.5 | 1366×768 |
| M125NWN1 R0 | IVO | 12.5 | 1366×768 |
| M125NWR2 R1 | IVO | 12.5 | 1366×768 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| LP154W02-TL06 | LG Display | 15.4 | 1680×1050 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP171WE3-TLA2 | LG Display | 17.1 | 1680×1050 |
| LTN121AT06-G01 | Samsung | 12.1 | 1280×800 |
| LTN141BT08-002 | Samsung | 14.1 | 1440×900 |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| LTN160HT02-001 | Samsung | 16.0 | 1920×1080 |
| N141I1-L04 | Innolux | 14.1 | 1280×800 |
