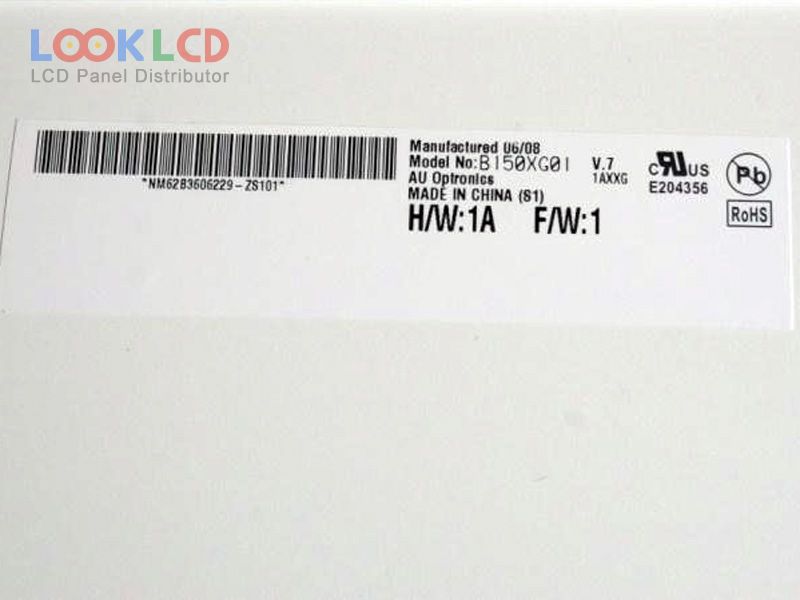

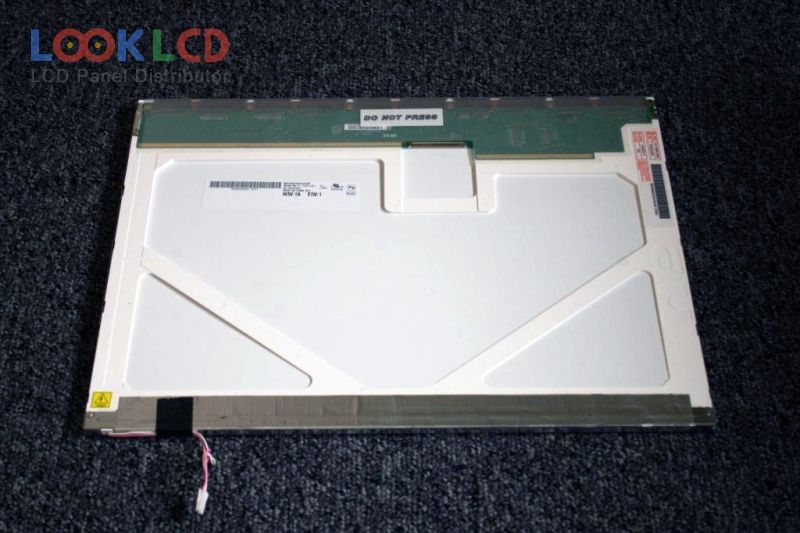

| Varenummer | B150XG01 V7 |
| Mærke | AUO |
| Størrelse | 15.0 |
| Ansøgning | NBPC |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B150XG01 V7 3 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 317.3×242×6 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Hard coating (3H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 24/11 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| AC150XA03 | Mitsubishi | 15.0 | 1024×768 |
| B150XG01 V2 | AUO | 15.0 | 1024×768 |
| B150XG01 V7 | AUO | 15.0 | 1024×768 |
| B150XG02 V4 | AUO | 15.0 | 1024×768 |
| FLC38XGC6V-06P | Fujitsu | 15.0 | 1024×768 |
| G150XG01 V3 | AUO | 15.0 | 1024×768 |
| HT150X02-101 | BOE | 15.0 | 1024×768 |
| LP150E07-A3 | LG Display | 15.0 | 1400×1050 |
| LQ150X1LGN2C | SHARP | 15.0 | 1024×768 |
| LTN150KT02-801 | Samsung | 15.0 | 1600×900 |
| B141PW04 V0 HW2A | AUO | 14.1 | 1440×900 |
| B154EW02 V0 | AUO | 15.4 | 1280×800 |
| B154EW04 V7 | AUO | 15.4 | 1280×800 |
| B156HAN01.2 | AUO | 15.6 | 1920×1080 |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LP171WP4-TLB3 | LG Display | 17.1 | 1440×900 |
| LTN133AT07-G01 | Samsung | 13.3 | 1280×800 |
| N141I3-L01 | Innolux | 14.1 | 1280×800 |
