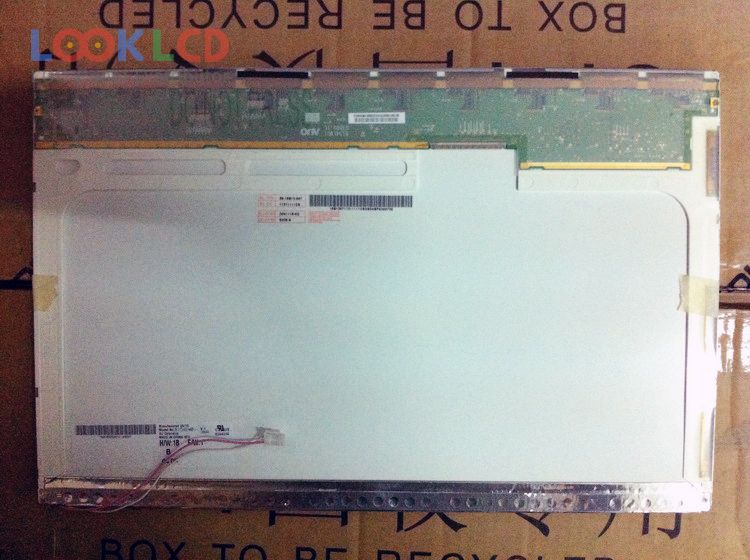

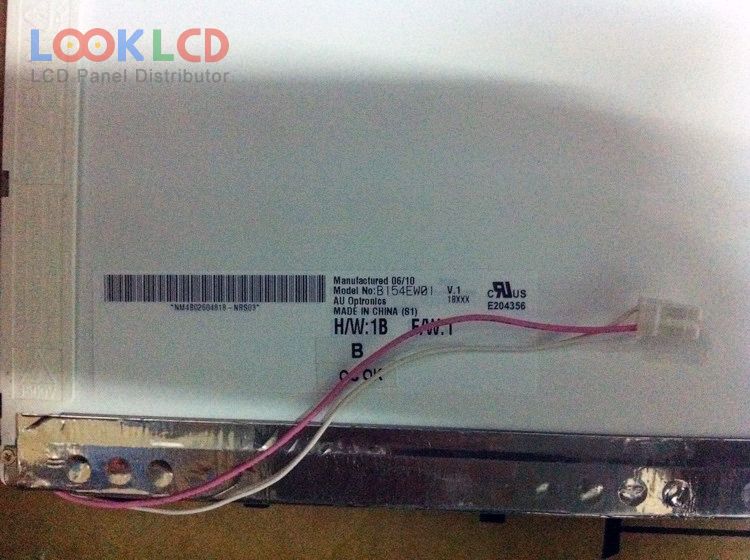

| Varenummer | B154EW01 V1 |
| Mærke | AUO |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | AUO |
| panel model | B154EW01 V1 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| omrids | 344×222×6.8 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H), Reflection 2.5% (Typ.) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 18/7.0 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B154EW01 V1 | AUO | 15.4 | 1280×800 |
| B154EW01 V9 | AUO | 15.4 | 1280×800 |
| B154EW02 V2 | AUO | 15.4 | 1280×800 |
| B154EW02 V3 | AUO | 15.4 | 1280×800 |
| B154EW02 V6 | AUO | 15.4 | 1280×800 |
| B154EW02 V7 | AUO | 15.4 | 1280×800 |
| B154EW04 V7 | AUO | 15.4 | 1280×800 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| B154EW08 V1 | AUO | 15.4 | 1280×800 |
| B154EW09 V0 | AUO | 15.4 | 1280×800 |
| LP121WX4-TLA1 | LG Display | 12.1 | 1280×800 |
| LP140WD2-TLE2 | LG Display | 14.0 | 1600×900 |
| LP140WH1-TLD6 | LG Display | 14.0 | 1366×768 |
| LP150E07-A3K1 | LG Display | 15.0 | 1400×1050 |
| LP171WP4-TLN2 | LG Display | 17.1 | 1440×900 |
| LP173WD1-TLC1 | LG Display | 17.3 | 1600×900 |
| LTN141AT13-H01 | Samsung | 14.1 | 1280×800 |
| LTN156AT17-D02 | Samsung | 15.6 | 1366×768 |
| N140HGE-EA1 | Innolux | 14.0 | 1920×1080 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
