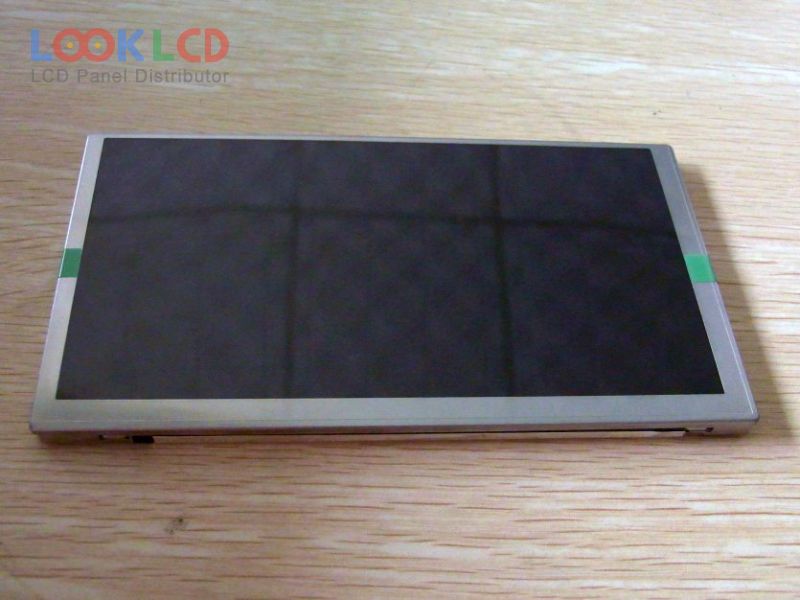

| Varenummer | CLAA061LA0DCW |
| Mærke | CPT |
| Størrelse | 6.1 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA061LA0DCW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.1 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 136.2×72 mm |
| omrids | 149×82.9×6.36 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193170% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S4PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/9.2/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| CLAA069LA0NCW | CPT | 7.0 | 800×480 |
| CLAA069LA1AAW | CPT | 7.0 | 800×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| CLAA069LB06 CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| C043GW01 V0 | AUO | 4.3 | 400×234 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| DJ080PA-01C | Innolux | 8.0 | |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LA092WV1-SD01 | LG Display | 9.2 | 800×480 |
| LQ049B5DG04 | SHARP | 4.9 | 320×96 |
| TFD65W46 | TOSHIBA | 6.5 | 480×234 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
