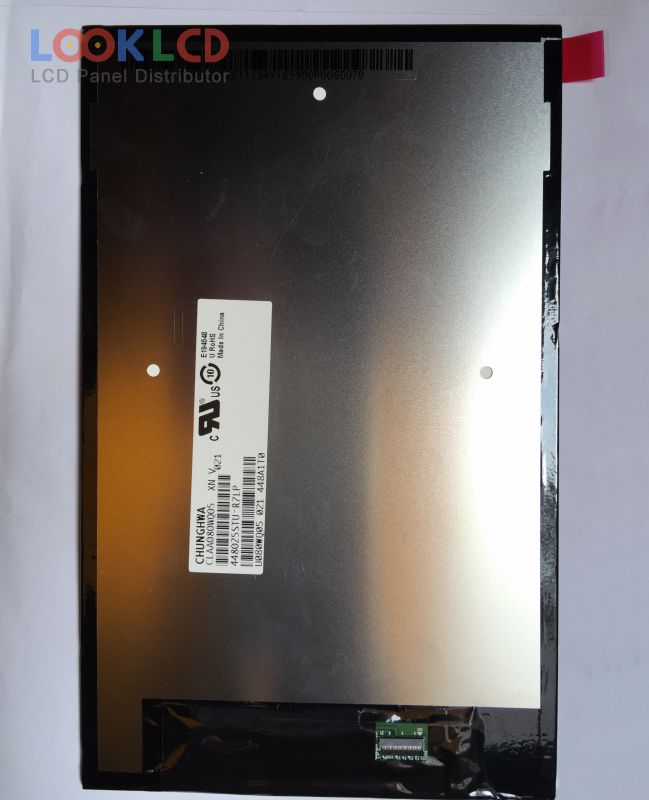

| Varenummer | CLAA080WQ05 |
| Mærke | CPT |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | CPT |
| panel model | CLAA080WQ05 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | HFFS, Normally Black, Transmissive |
| aktivt område | 107.64×172.224 mm |
| omrids | 114.6×184.7×4.56 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193158% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S7PWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 31 pins |
| indgangsspænding | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| Ansøgning | PAD |
