| Varenummer | COM43T4N95VLS |
| Mærke | Ortustech |
| Størrelse | 4.3 |
| Ansøgning | Handheld & PDA |
| Løsning | 480×272 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 350:1 |
| Farver | 16.7M |
| Baggrundsbelysning | 7S1P |
| Interface | Parallel |
| fabrikant | Ortustech |
| modelnavn | COM43T4N95VLS |
| skærmstørrelse | 4.3 inch |
| skærmtype | LCM , a-Si TFT-LCD |
| pixel antal | 480(RGB)×272 (WQVGA) 128PPI |
| arrangement | RGB Vertical Stripe |

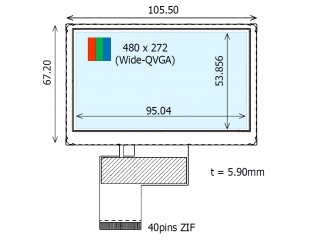

| aktivt område (mm) | 95.04 × 53.856 (H×V) |
| omrids (mm) | 105.5 × 67.2 (H×V×D) |
| rammeareal (mm) | - |
| behandling | Hard coating (3H) |
| luminans | 500 cd/m² (Typ.) |
| kontrastforhold | 350 : 1 (Typ.) (TM) |
| synsvinkel | 70/70/60/50 (Typ.)(CR≥10) |
| respons | 40/60 (Max.)(Tr/Td) ms |
| god udsigt kl | - |
| arbejdstilstand | TN, Normally White, Transmissive |
| farvedybde | 16.7M 67% NTSC |
| baggrundsbelysning | 7S1P WLED , 70K hours , No Driver |
| masse | - |
| anvendes til | Handheld & PDA |
| opdateringshastighed | 60Hz |
| berøringsskærm | Without |
| signaltype | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
