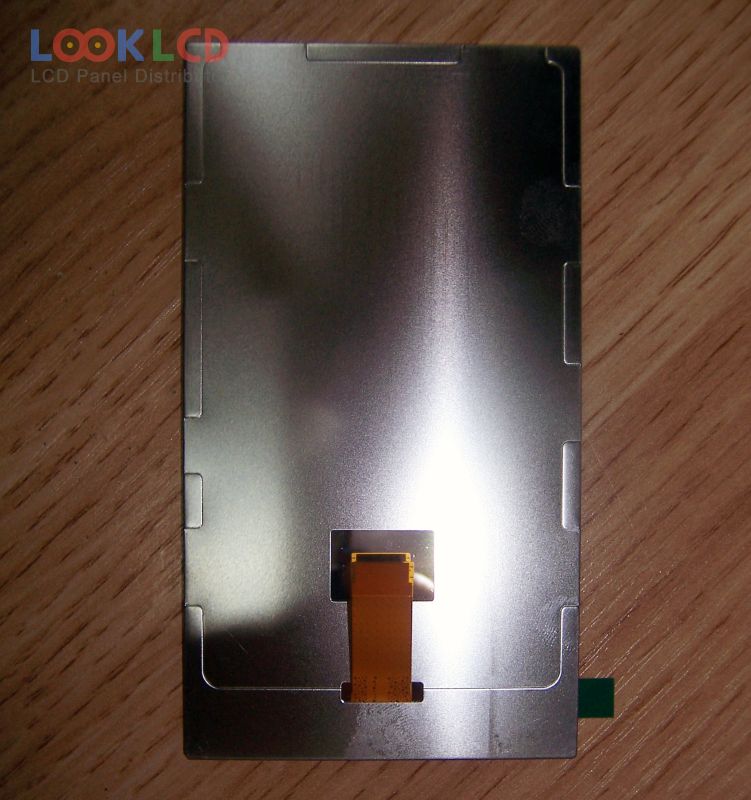

| Varenummer | H429AL02.0 |
| Mærke | AUO |
| Størrelse | 4.3 |
| Ansøgning | MPH |
| Løsning | 540×960 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | 700:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | AUO |
| panel model | H429AL02.0 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 540(RGB)×960 , qHD |
| visningstilstand | PSA, Normally Black, Transmissive |
| aktivt område | 53.46×95.04 mm |
| omrids | 54.84×98.03 mm |
| overflade | Antireflection |
| lysstyrke | |
| kontrastforhold | 700:1 (Min.) |
| vise farver | 16.7M (8-bit) |
| responstid | 9/9 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S1PWLEDWithout Driver |
| signal interface | MIPI (2 data lanes), 25 pins |
| indgangsspænding | 1.8/5.0V (Typ.)(VDDI/VCI) |
| Ansøgning | MPH |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| AMS427GL45-0 | Samsung | 4.3 | 480×800 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| COM43T4115VTX | ORTUSTECH | 4.3 | 480×272 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| H429AL01 V0 | AUO | 4.3 | 540×960 |
| H429AL02.0 | AUO | 4.3 | 540×960 |
| LMS430HF19 | Samsung | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| ACX425AKM | SONY | 3.7 | 480×800 |
| AMS347FF02 | Samsung | 3.5 | 360×640 |
| AMS395GB04 | Samsung | 4.0 | 360×640 |
| AMS397GE66 | Samsung | 4.0 | 480×800 |
| CLAF050LN41 TXX | CPT | 5.0 | 540×960 |
| ET028002DMU | EDT | 2.8 | 240×320 |
| IROP018-010-0128064-W | Other | 0.96 | 128×64 |
| LH480HX1-SD01 | LG Display | 4.8 | 480×1024 |
| LH530QH1-SD01 | LG Display | 5.3 | 1440×2560 |
| TM020HDZ05 | Tianma | 2.0 | 240×320 |
