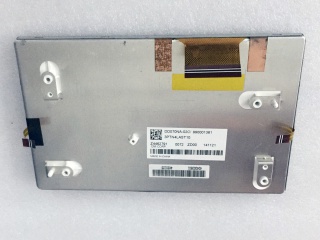

| Varenummer | DD070NA-02C |
| Mærke | Chimei Innolux |
| Størrelse | 7.0 |
| Ansøgning | Automotive Display |
| Løsning | 800×480 |
| Sammensætning | LCM , a-Si TFT-LCD |
| Lysstyrke | |
| CR | 1600:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | CMOS |
| fabrikant | Chimei Innolux |
| skærmstørrelse | 7.0 inch |
| pixel antal | 800(RGB)×480 (WVGA) 133PPI |
| aktivt område (mm) | 152.4 × 91.44 (H×V) |
| rammeareal (mm) | 154.4 × 94.34 (H×V) |
| luminans | 400 cd/m² (Typ.) |
| synsvinkel | 70/70/60/60 (Typ.)(CR≥10) |
| god udsigt kl | 12 o'clock |
| farvedybde | 262K/16.7M 74% NTSC |
| masse | 232±23g |
| opdateringshastighed | 60Hz |
| signaltype | CMOS (1 ch, 6/8-bit) , 60 pins FPC |
| spændingsforsyning | 3.3/3.3/10/19/-6.8V (Typ.)(VCC/VDDG/AVDD/VGH/VGL) |
| max. vurderinger | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| modelnavn | DD070NA-02C |
| skærmtype | LCM , a-Si TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 169.96 × 106.64 × 32.1 (H×V×D) |
| behandling | Antiglare, Hard coating (3H) |
| kontrastforhold | 1600 : 1 (Typ.) (TM) |
| respons | 5/11 (Typ.)(Tr/Td) ms |
| arbejdstilstand | TN, Normally White, Transmissive |
| baggrundsbelysning | WLED , 30K hours , No Driver |
| anvendes til | Automotive Display |
| berøringsskærm | 4-wire Resistive Touch |
