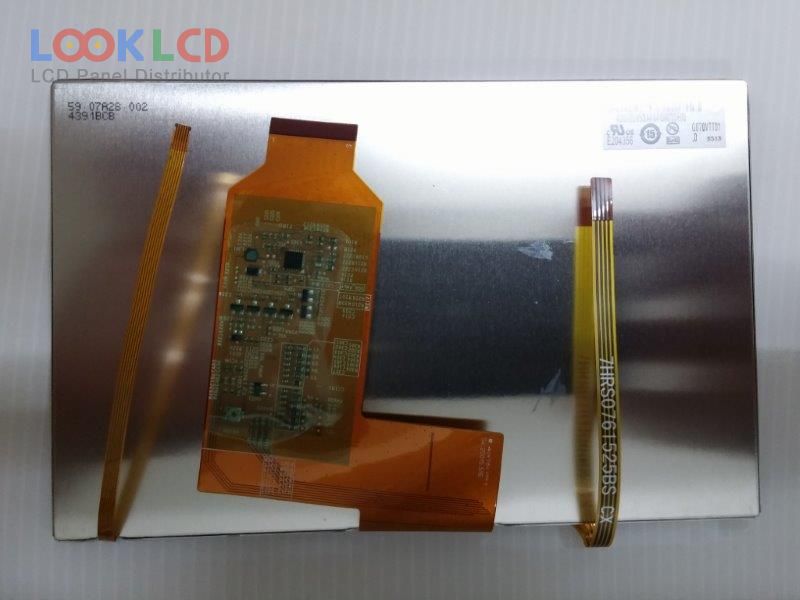

| Varenummer | G070VTT01.0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | IA |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 360 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | G070VTT01.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800×480(RGB) , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×105.8×4.81 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 360 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
