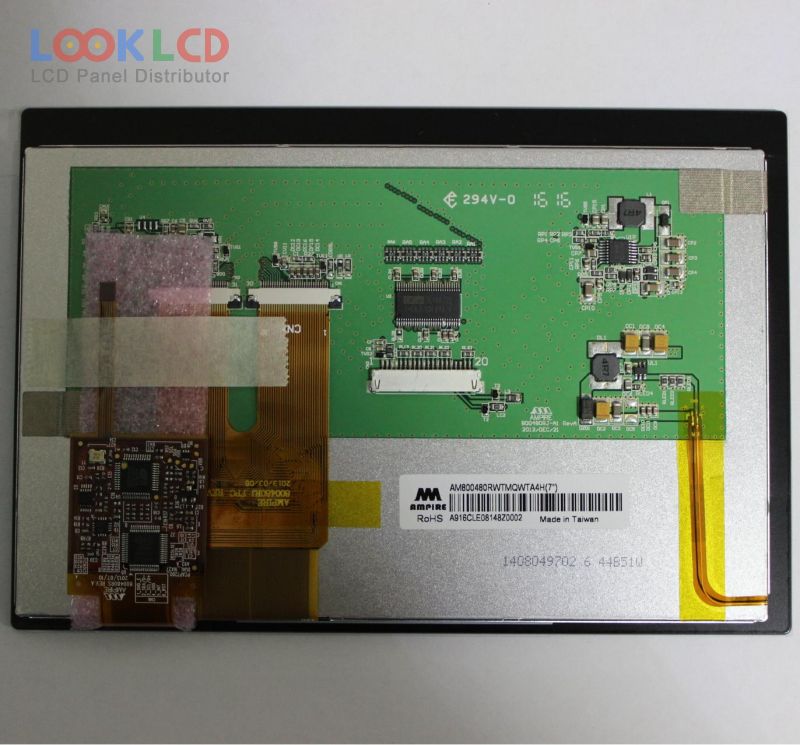

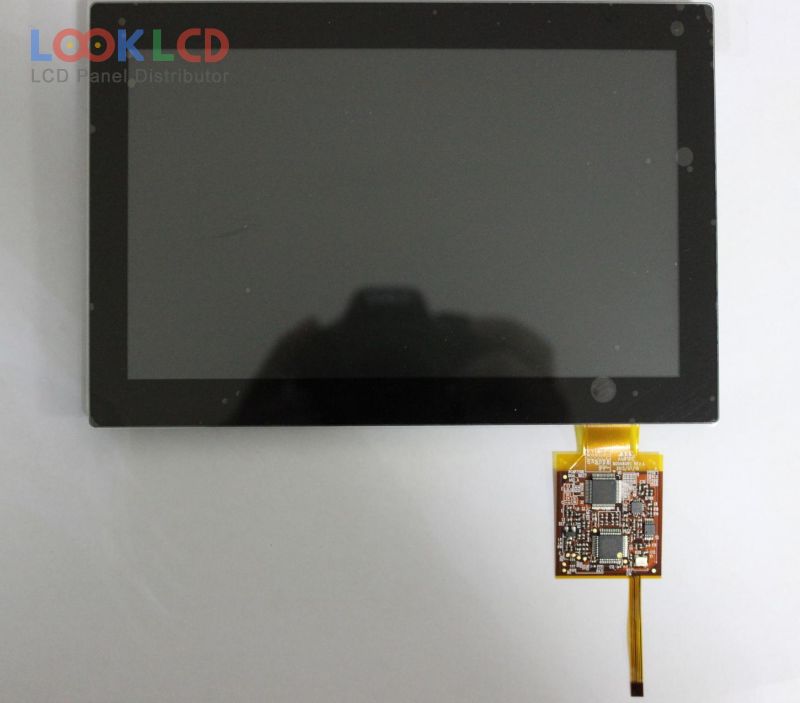

| Varenummer | AM-800480RWTMQW-TA4H |
| Mærke | AMPIRE |
| Størrelse | 7.0 |
| Ansøgning | IA |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 425 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | AMPIRE |
| panel model | AM-800480RWTMQW-TA4H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×118×10.69 mm |
| overflade | |
| lysstyrke | 425 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 65Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
| AA121SJ03 | Mitsubishi | 12.1 | 800×600 |
| AA121XH03 | Mitsubishi | 12.1 | 1024×768 |
| G150XG01 V2 | AUO | 15.0 | 1024×768 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| LJ640U34 | SHARP | 8.9 | 640×400 |
| LQ104S1LG32 | SHARP | 10.4 | 800×600 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| MD640.400-52 | FINLUX | 9.1 | 640×400 |
| OEL9M0064-B-E | Other | 2.0 | 128×32 |
| RGS10096096WR001 | RiTdisplay | 0.96 | 96×96 |
