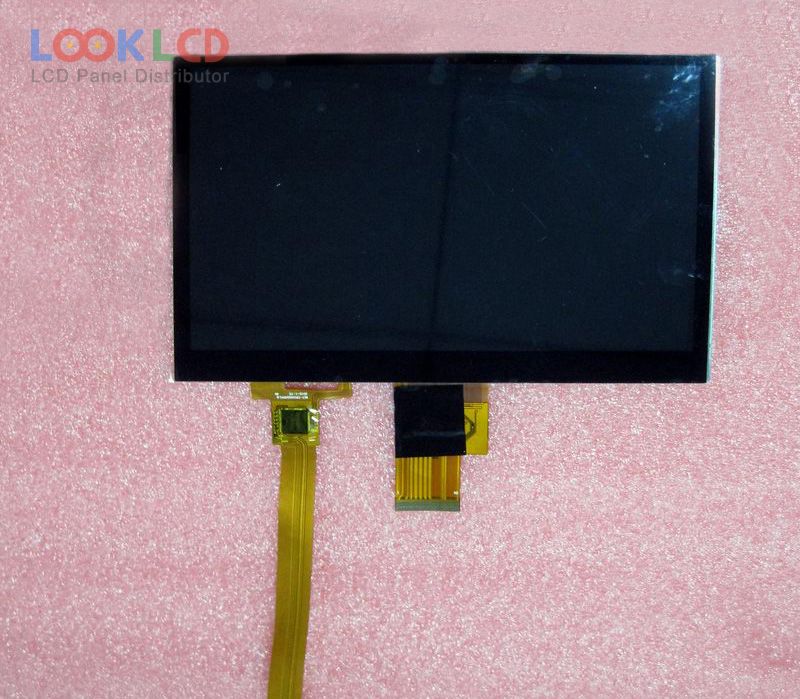

| Varenummer | DLC0700JBG-T-6 |
| Mærke | Other |
| Størrelse | 7.0 |
| Ansøgning | IA |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 430 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | DLC |
| panel model | DLC0700JBG-T-6 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.21×85.92 mm |
| omrids | 165.75×102.05×5.05 mm |
| overflade | |
| lysstyrke | 430 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S10PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
