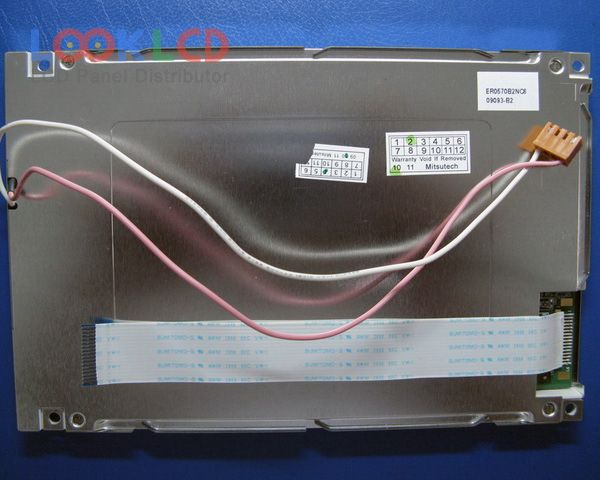

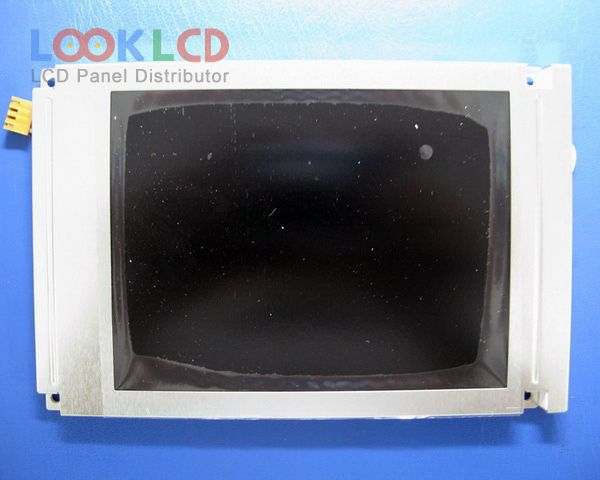

| Varenummer | ER0570B2NC6 |
| Mærke | EDT |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 150 |
| CR | 50:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel Data |
| panel mærke | EDT |
| panel model | ER0570B2NC6 |
| paneltype | CSTN-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | STN, Normally Black, Transmissive |
| aktivt område | 115.17×86.37 mm |
| omrids | 167×109×9.4 mm |
| overflade | |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 50:1 (Typ.) |
| vise farver | Color |
| responstid | 350/250 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/20/40 (Min.)(CR≥2)(L/R/U/D) |
| frekvens | 120Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel Data (8-bit), 16 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VDD) |
| Ansøgning | IA |
