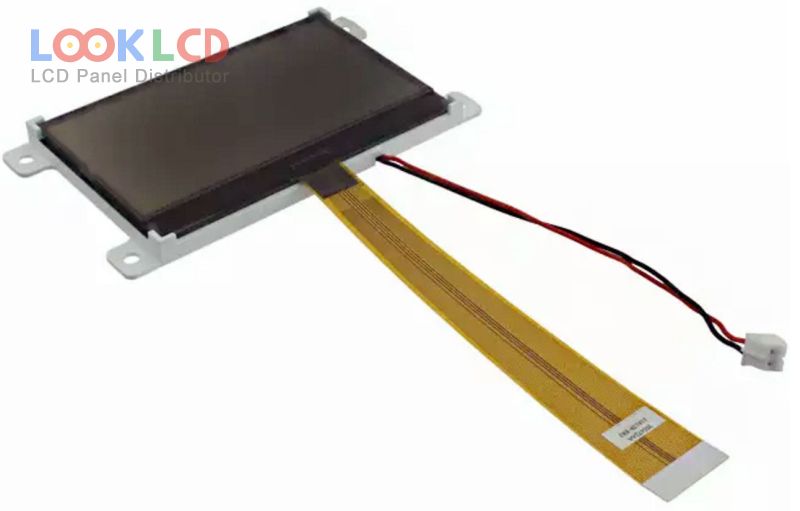

| Varenummer | F-55472GNFJ-SLW-AAN |
| Mærke | Kyocera |
| Størrelse | 2.8 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | LCM |
| Lysstyrke | 60 |
| CR | 5:1 |
| Farver | Monochrome |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | Kyocera |
| panel model | F-55472GNFJ-SLW-AAN |
| paneltype | STN-LCD , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 128×64 |
| visningstilstand | STN, Black/White mode, Transflective |
| aktivt område | 63.857×31.921 mm |
| omrids | 89.7×49.8×6 mm |
| overflade | |
| lysstyrke | 60 cd/m² (Typ.) |
| kontrastforhold | 5:1 (Typ.)(Transmissive) |
| vise farver | Monochrome |
| responstid | 190/95 (Typ.)(Tr/Td) |
| synsvinkel | |
| lampe type | 1S4PWLEDWithout Driver |
| signal interface | 8-bit 6080/8080 parallel, 30 pins |
| indgangsspænding | 3.0V (Typ.) |
| Ansøgning | IA |
