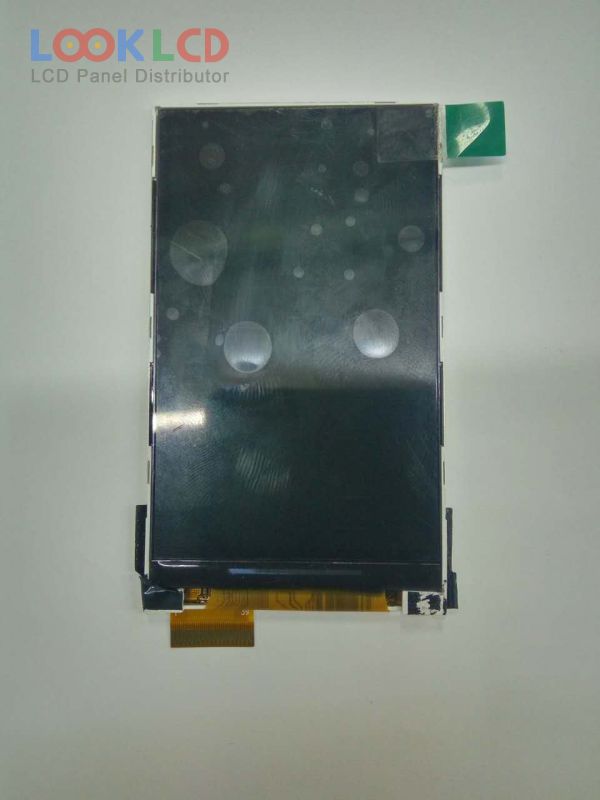

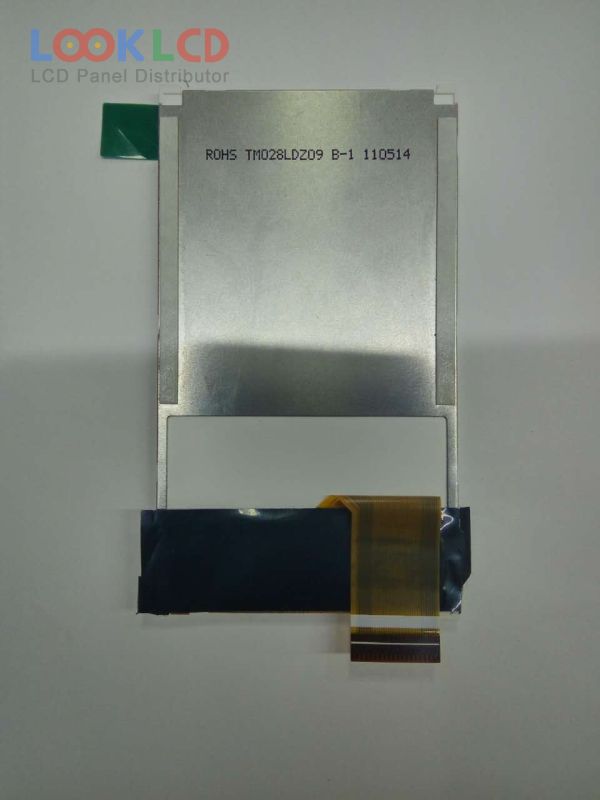

| Varenummer | TM028LDZ09 |
| Mærke | Tianma |
| Størrelse | 2.8 |
| Ansøgning | MPH |
| Løsning | 240×400 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 450:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM028LDZ09 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.8 inch |
| løsning | 240(RGB)×400 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 36.72×61.2 mm |
| omrids | 42×72.8 mm |
| overflade | |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 65K/262K , CIE193156% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1S4PWLEDWithout Driver |
| signal interface | CPU, 39 pins |
| indgangsspænding | (1.8/2.8)/2.8V (Typ.)(VDDIO/VDD) |
| Ansøgning | MPH |
