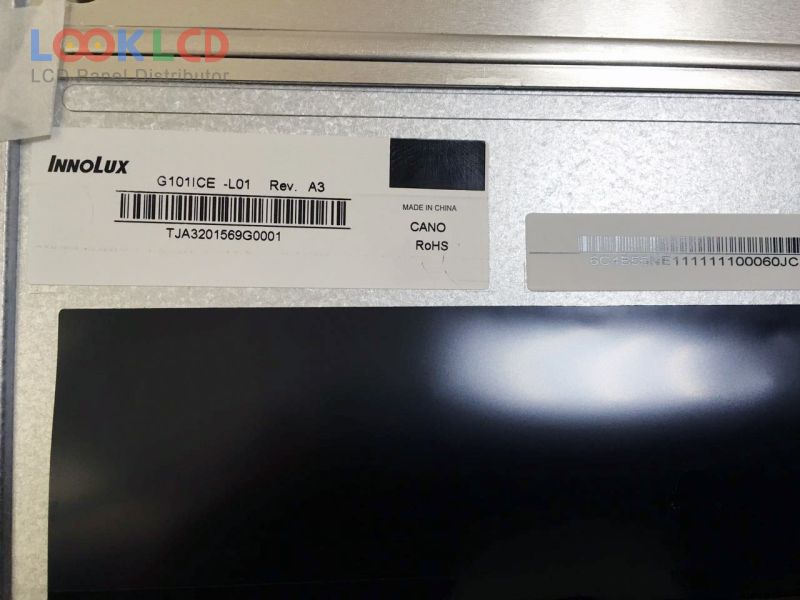

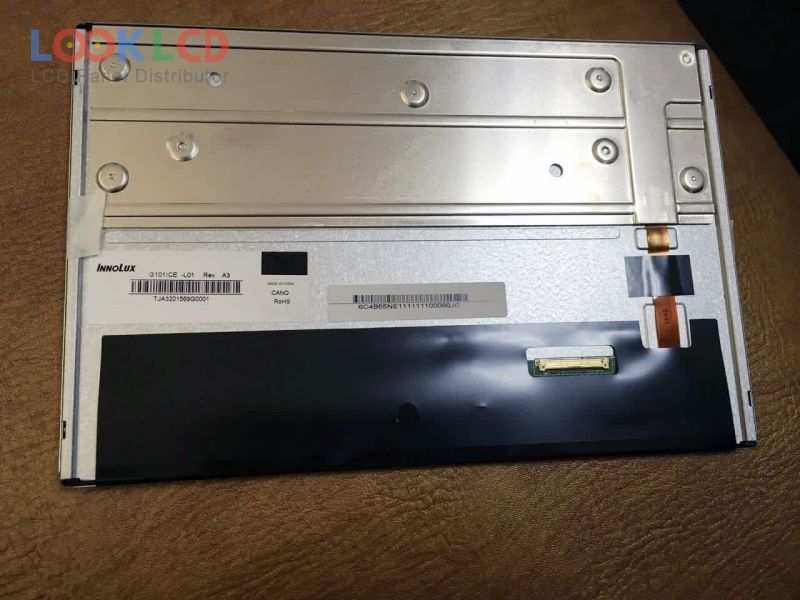

| Varenummer | G101ICE-L01 |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | IA |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | INNOLUX |
| panel model | G101ICE-L01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AAS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| omrids | 230.7×152.55×7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193152% |
| responstid | 14/11 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| AM-1024600L3TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101EW04 V0 | AUO | 10.1 | 1280×800 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| CLAA101ND07CW | CPT | 10.1 | 1024×600 |
| G101ICE-L01 | Innolux | 10.1 | 1280×800 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| TT101WSQ-N10 | BOE | 10.1 | 1024×600 |
| VVX10F034N00 | Panasonic | 10.1 | 1920×1200 |
| EL320.240.36 ET CC | Lumineq | 5.7 | 320×240 |
| G170J1-LE1 | Innolux | 17.0 | 1920×1200 |
| LM290WW2-SSA1 | LG Display | 29.0 | 2560×1080 |
| LT104AD18F00 | TOSHIBA | 10.4 | 800×600 |
| LTB190E2-L01 | Samsung | 19.0 | 1280×1024 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| OEL9M0064-R-E | Other | 2.0 | 128×32 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| SH320240C | Other | 5.7 | 320×240 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
