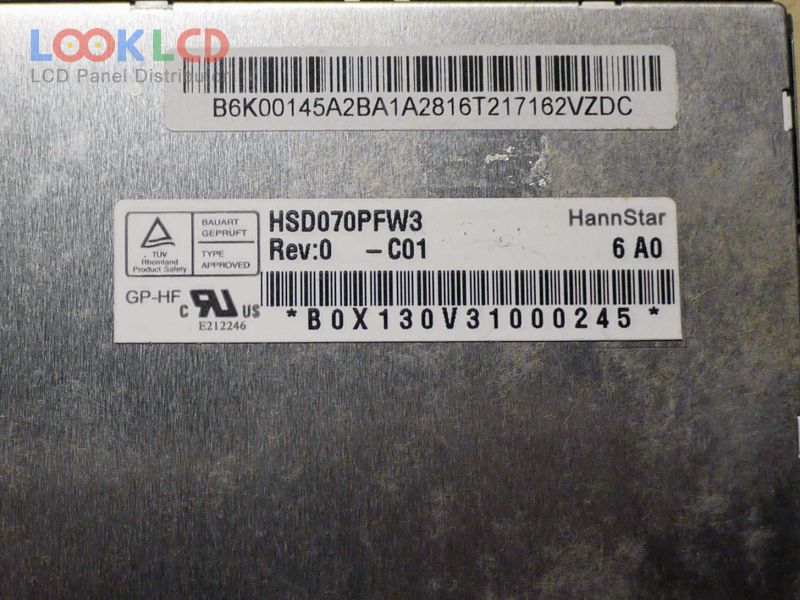

| Varenummer | HSD070PFW3-C01 |
| Mærke | HannStar |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD070PFW3-C01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 153.6×90 mm |
| omrids | 164.4×102.2×6 mm |
| overflade | Hard coating |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193150% |
| responstid | 4/12 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S8PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| Ansøgning | CNS |
