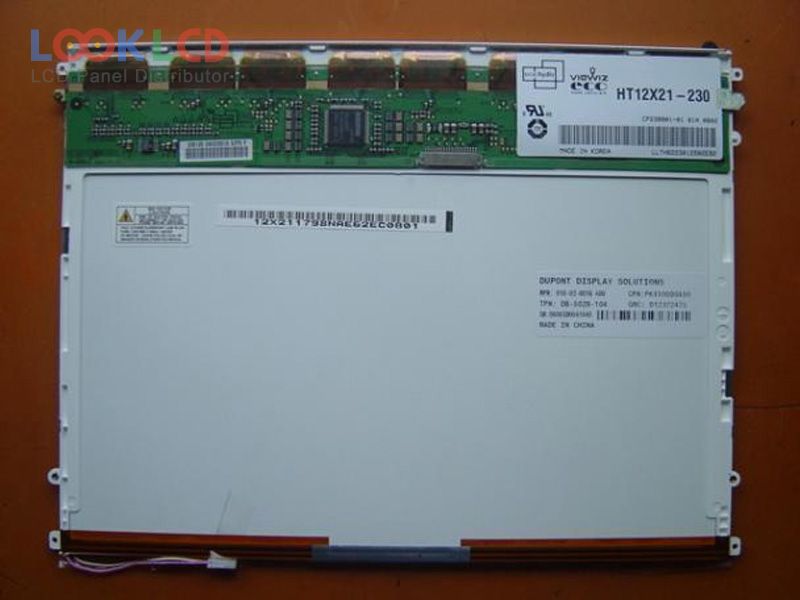

| Varenummer | HT12X21-230 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | PAD |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 180 |
| CR | 450:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | BOE HYDIS |
| panel model | HT12X21-230 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | AFFS, Normally Black, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 270×199×7 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 180 cd/m² (Typ.) |
| kontrastforhold | 450:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
