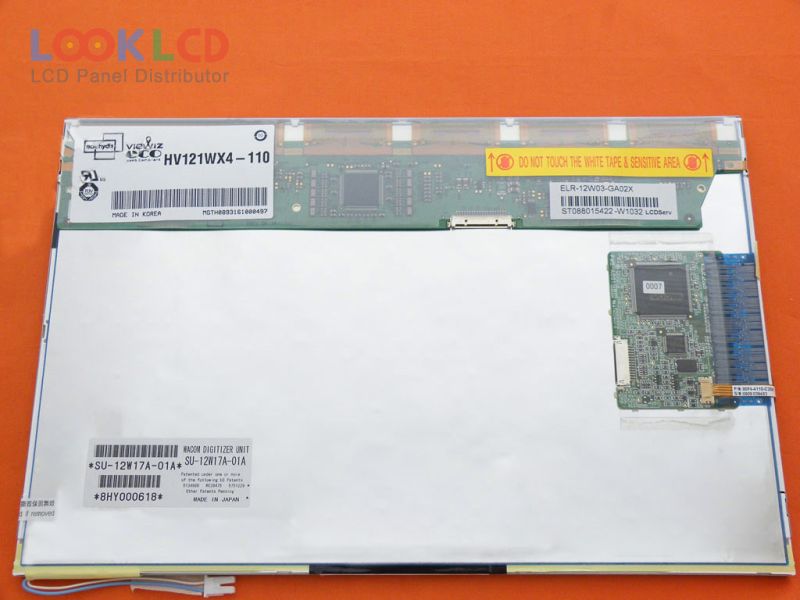

| Varenummer | HV121WX4-110 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | HYDIS |
| panel model | HV121WX4-110 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AFFS, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| omrids | 275.8×178×6.7 mm |
| overflade | Antireflection |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 28 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| HT12X21-230 | HYDIS | 12.1 | 1024×768 |
| HT12X21-240 | HYDIS | 12.1 | 1024×768 |
| HT12X21-351 | HYDIS | 12.1 | 1024×768 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
