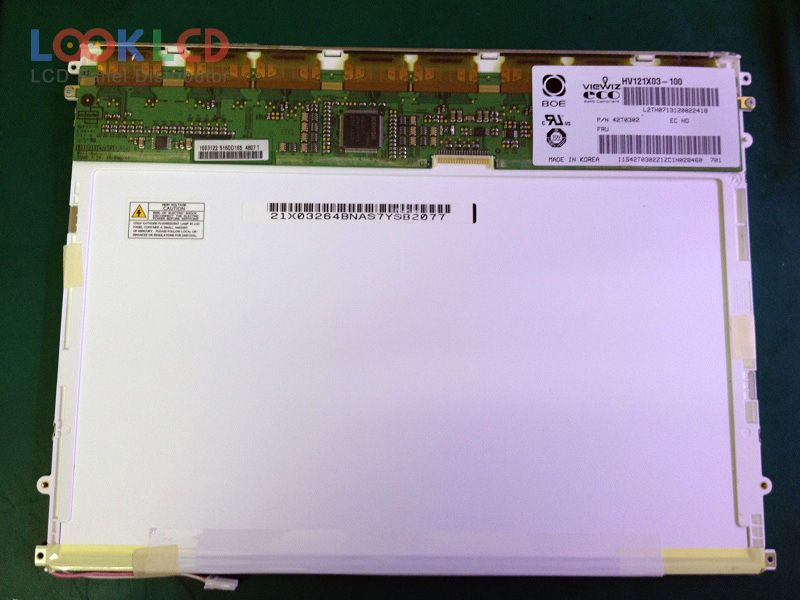

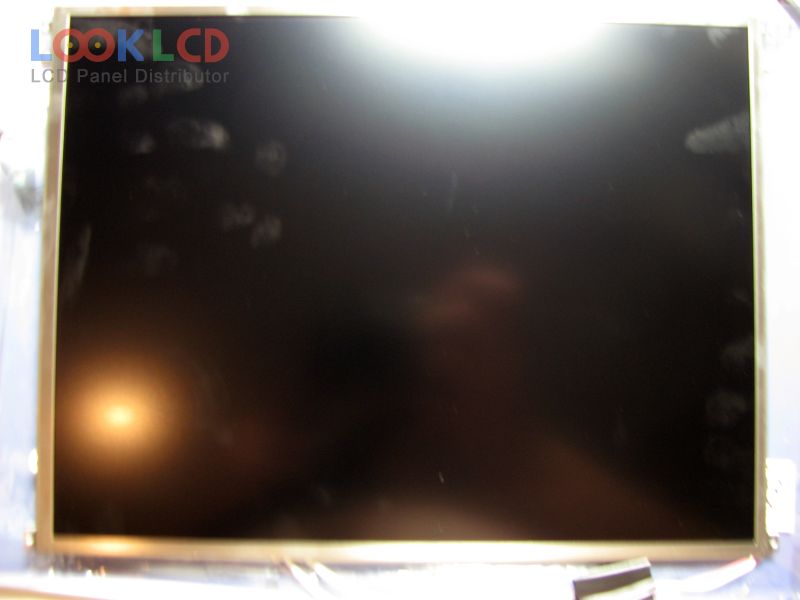

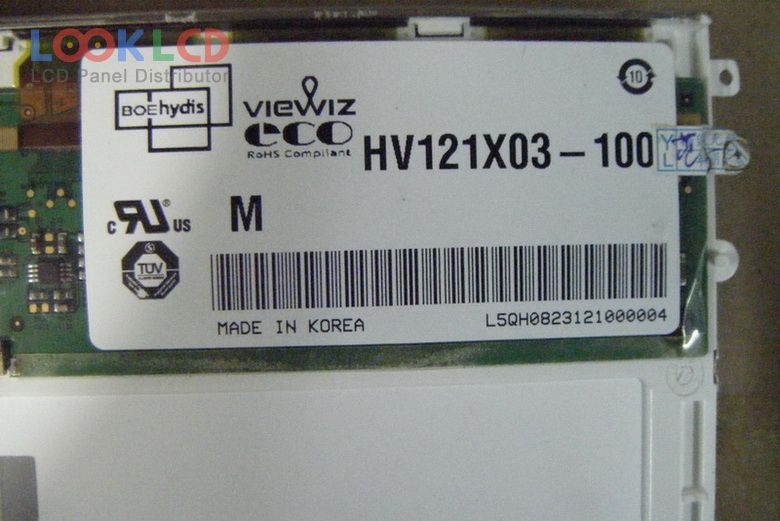

| Varenummer | HV121X03-100 |
| Mærke | HYDIS |
| Størrelse | 12.1 |
| Ansøgning | PAD |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 190 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | BOE HYDIS |
| panel model | HV121X03-100 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.1 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | AFFS, Normally Black, Transmissive |
| aktivt område | 245.76×184.32 mm |
| omrids | 270×199×7 mm |
| overflade | Antiglare (Haze 40%), Hard coating (2H), Antireflection |
| lysstyrke | 190 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193144% |
| responstid | 40 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| G121SN01 V4 | AUO | 12.1 | 800×600 |
| HV121X02-100 | HYDIS | 12.1 | 1024×768 |
| HV121X03-100 | HYDIS | 12.1 | 1024×768 |
| LM12S49 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LTD121C33U | TOSHIBA | 12.1 | 800×600 |
| LTD121EW6S | TOSHIBA | 12.1 | 1280×800 |
| LTM12C283 | TOSHIBA | 12.1 | 800×600 |
| LTN121XL01-N03 | Samsung | 12.1 | 1024×768 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| EJ080NA-04A | Innolux | 8.0 | 1024×768 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HV070WX2-1E0 | HYDIS | 7.0 | 800×1280 |
| HV121P01-100 | HYDIS | 12.1 | 1400×1050 |
| LQ070S1DW01 | SHARP | 7.0 | 600×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| TFT08925601600 | SEBO | 8.9 | 2560×1600 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
