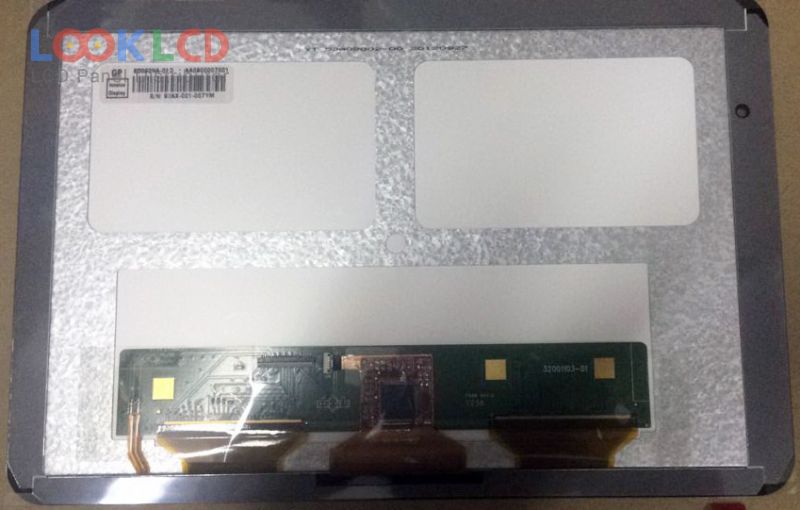

| Varenummer | ED090NA-01D |
| Mærke | Innolux |
| Størrelse | 9.0 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | Assembly |
| Lysstyrke | 200 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CHIMEI INNOLUX |
| panel model | ED090NA-01D |
| paneltype | a-Si TFT-LCD , Assembly |
| panelstørrelse | 9.0 inch |
| løsning | 1280(RGB)×800 , WXGA |
| aktivt område | 193.92×121.2 mm |
| omrids | 235.12×156.4×7.84 mm |
| overflade | Hard coating (7H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| synsvinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signal interface | LVDS (1 ch, 6/8-bit), 51 pins |
| indgangsspænding | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
