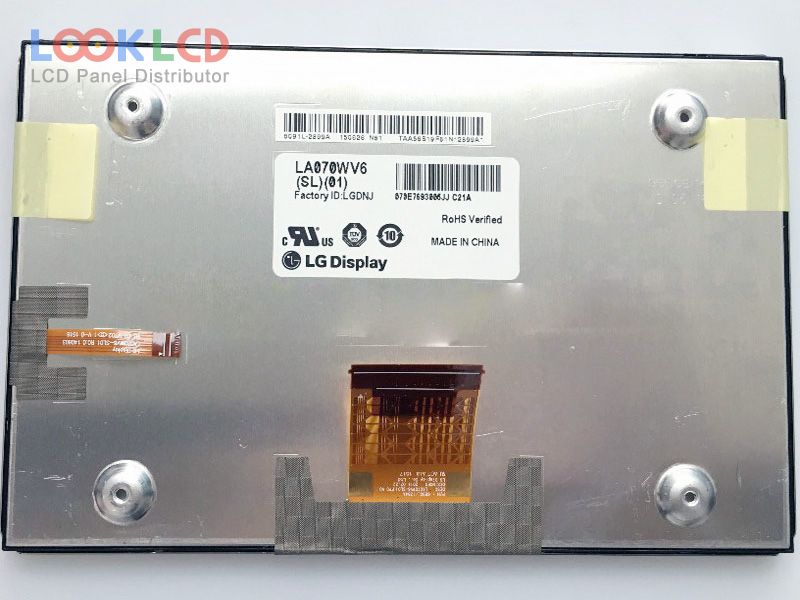

| Varenummer | LA070WV6-SL01 |
| Mærke | LG Display |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 810 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LA070WV6-SL01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 164.55×105.01×10.2 mm |
| overflade | Antiglare (Haze 25%), Hard coating (3H) |
| lysstyrke | 810 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193160% |
| responstid | 15/10 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
