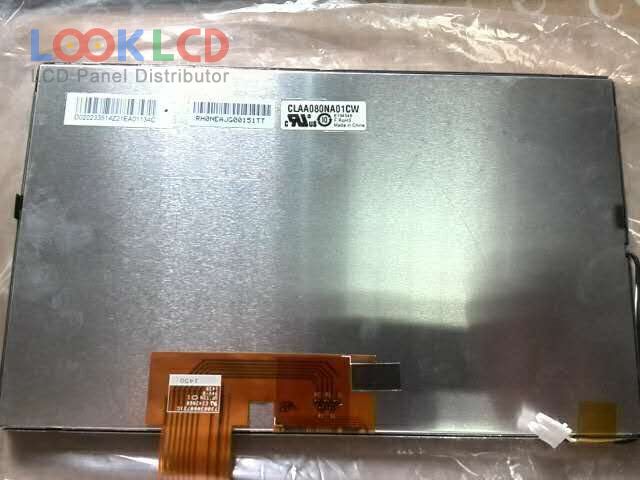

| Varenummer | CLAA080NA01 CW |
| Mærke | CPT |
| Størrelse | 8.0 |
| Ansøgning | CNS |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 670 |
| CR | 800:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA080NA01 CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 176.64×99.36 mm |
| omrids | 192.8×116.9×6.7 mm |
| overflade | Antiglare |
| lysstyrke | 670 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/50/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 13S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3/9.6/21.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| LA058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ042T5DZ01 | SHARP | 4.2 | 480×272 |
| LQ070T5DG30 | SHARP | 7.0 | |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| T-51965GD088ZU-MFW-AEN | Kyocera | 8.8 | 640×240 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
