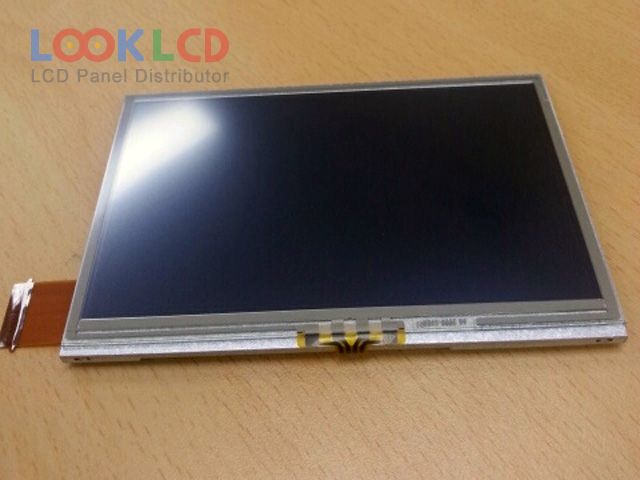

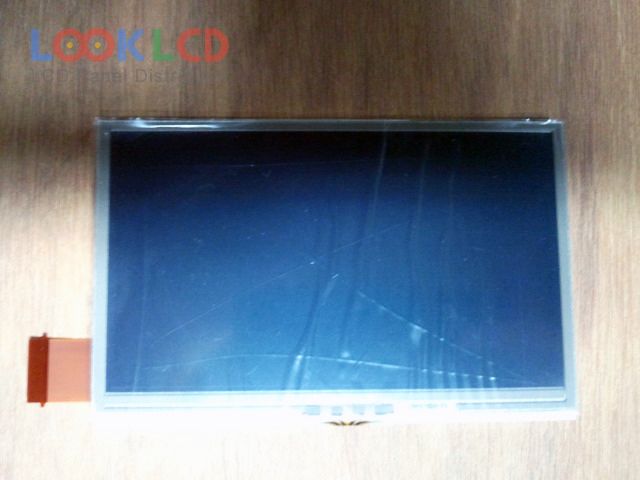

| Varenummer | LB043WQ3-TD01 |
| Mærke | LG Display |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG Display |
| panel model | LB043WQ3-TD01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| indgangsspænding | 2.5/3.3V (Typ.)(VDD) |
| Ansøgning | PND |
| 43WVF1G | SII | 4.3 | 800×480 |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| DLC0430LZG-6 | Other | 4.3 | 480×272 |
| LB043WQ1-TD01 | LG Display | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD01 | LG Display | 4.3 | 480×272 |
| LB043WQ3-TD03 | LG Display | 4.3 | 480×272 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LT043MDY5000 | TOSHIBA | 4.3 | 720×1280 |
| 43WQW4T | SII | 4.3 | 480×272 |
| 43WVF0H | SII | 4.3 | 800×480 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| ET043001DM6 | EDT | 4.3 | 480×272 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LMS430HF26 | Samsung | 4.3 | 480×272 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
