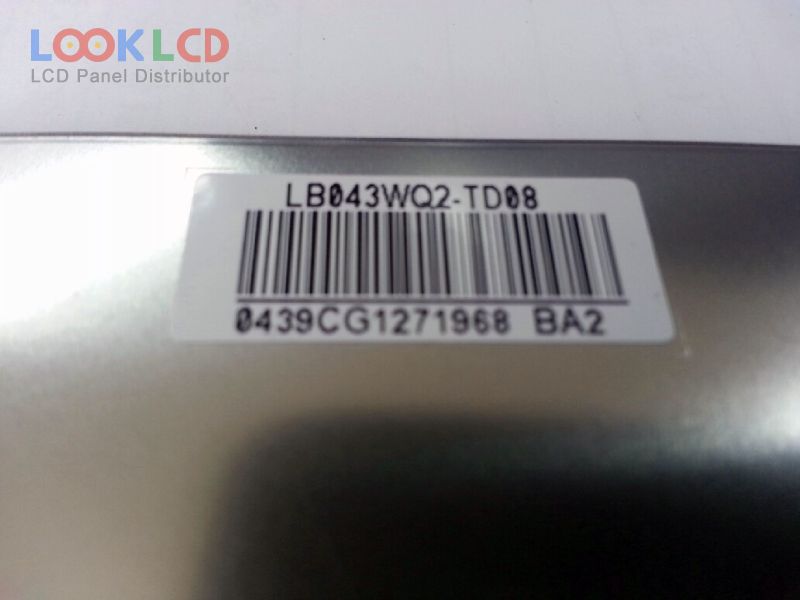

| Varenummer | LB043WQ2-TD08 |
| Mærke | LG Display |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG Display |
| panel model | LB043WQ2-TD08 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| indgangsspænding | 2.5/3.3V (Typ.)(VDD) |
| Ansøgning | PND |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LTE480WV-F01 | Samsung | 4.8 | 800×480 |
| TM043NDH02 | Tianma | 4.3 | 480×272 |
| TS40WD2B-03 | Other | 4.0 | 480×272 |
