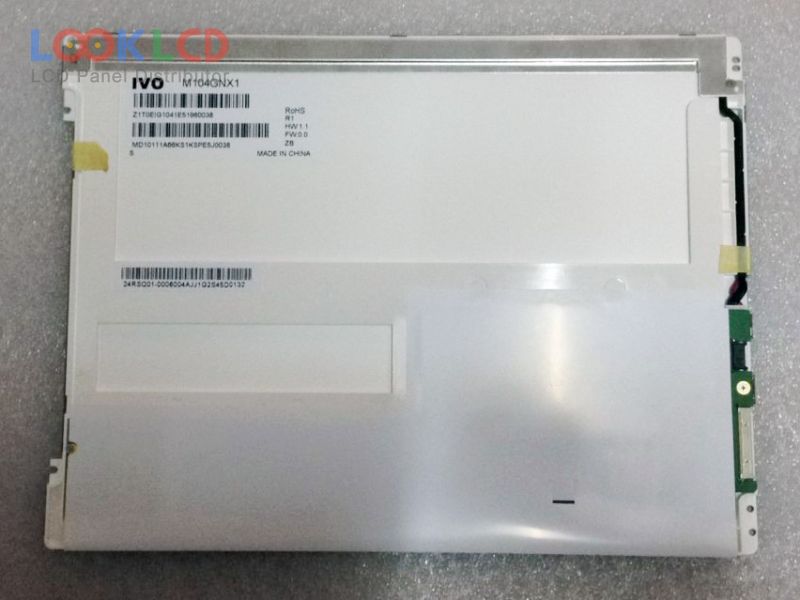

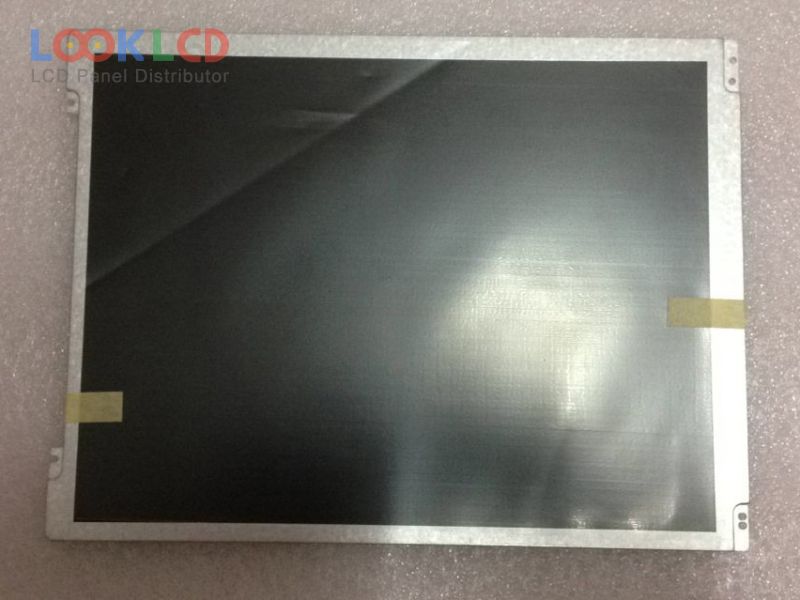

| Varenummer | M104GNX1 R1 |
| Mærke | IVO |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 900:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M104GNX1 R1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 236×176.9×6.3 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| AA104VC01 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA104VH02 | Mitsubishi | 10.4 | 640×480 |
| G104VN01 V0 | AUO | 10.4 | 640×480 |
| LB104S04-TL01 | LG Display | 10.4 | 800×600 |
| LQ10W03 | SHARP | 10.4 | 1024×600 |
| M104GNX1 R1 | IVO | 10.4 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| PD104VT1 | E Ink | 10.4 | 640×480 |
| TX26D12VM0AAA | KOE | 10.4 | 800×600 |
| G057VN01 V1 | AUO | 5.7 | 640×480 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| G121XN01 V0 | AUO | 12.1 | 1024×768 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LP064V1 | LG Display | 6.4 | 640×480 |
| NL6448AC33-27 | NLT | 10.4 | 640×480 |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| TCG035QVLPDANN-GN50 | Kyocera | 3.5 | 320×240 |
| TM057QDH01 | Tianma | 5.7 | 640×480 |
| TX26D202VM0BAA | KOE | 10.1 | 1920×1200 |
