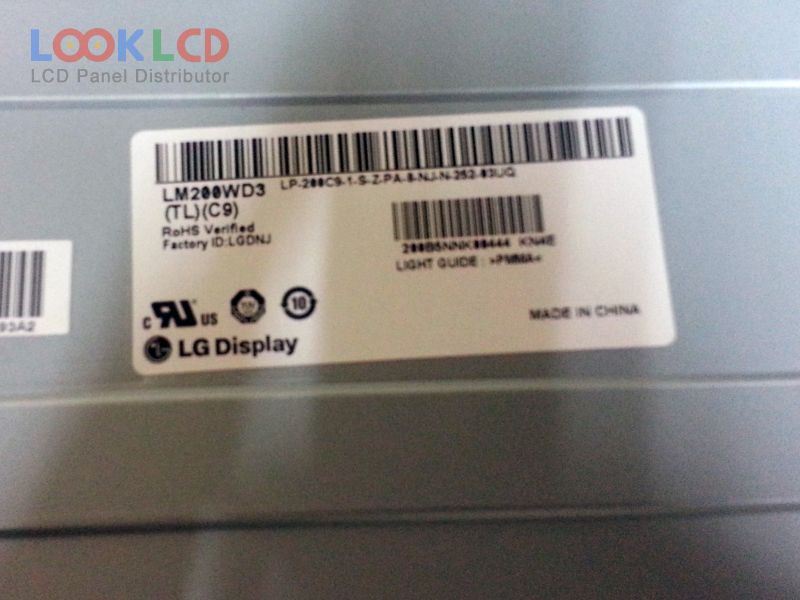

| Varenummer | LM200WD3-TLC9 |
| Mærke | LG Display |
| Størrelse | 20.0 |
| Ansøgning | DMPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LM200WD3-TLC9 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 20.0 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 442.8×249.075 mm |
| omrids | 462.8×272 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 1.1/3.9 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 stringsWLEDWithout Driver |
| signal interface | LVDS (2 ch, 8-bit), 30 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | DMPC |
