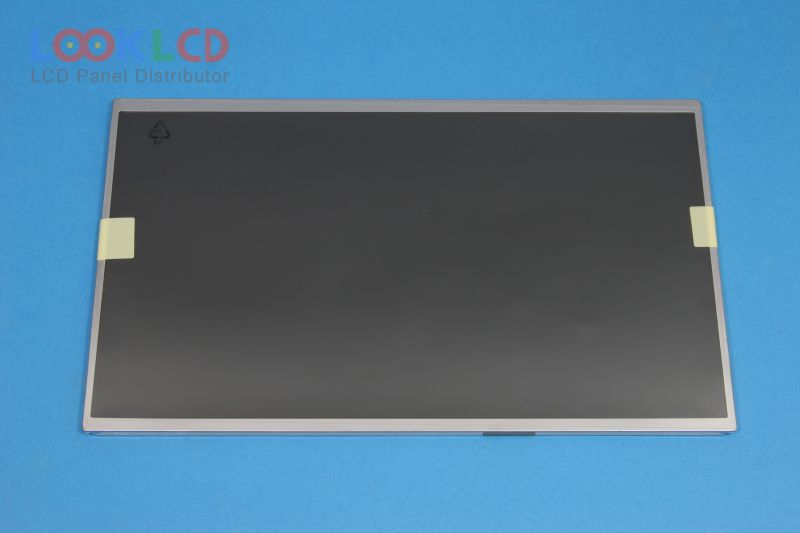

| Varenummer | LP116WH1-TLN1 |
| Mærke | LG Display |
| Størrelse | 11.6 |
| Ansøgning | NOPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | LG Display |
| panel model | LP116WH1-TLN1 7 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 11.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 256.125×144 mm |
| omrids | 268.5×162×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NOPC |
| LP116WF1-SPA1 | LG Display | 11.6 | 1920×1080 |
| LP116WH1-TLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH1-TLP1 | LG Display | 11.6 | 1366×768 |
| LP116WH2-TLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH4-SLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH4-SLN1 | LG Display | 11.6 | 1366×768 |
| LP116WH4-SLN2 | LG Display | 11.6 | 1366×768 |
| LP116WH4-TJA3 | LG Display | 11.6 | 1366×768 |
| LP116WH6-SLA1 | LG Display | 11.6 | 1366×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| B089AW01 V0 | AUO | 8.9 | 1024×600 |
| B089AW01 V2 | AUO | 8.9 | 1024×600 |
| B101AW06 V4 | AUO | 10.1 | 1024×600 |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| BT101IW01 V.0 | Innolux | 10.1 | 1024×600 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| HT101WSB-100 | BOE | 10.1 | 1024×600 |
| N101L6-L0B | Innolux | 10.1 | 1024×600 |
| N101N6-L01 | Innolux | 10.1 | 1024×576 |
