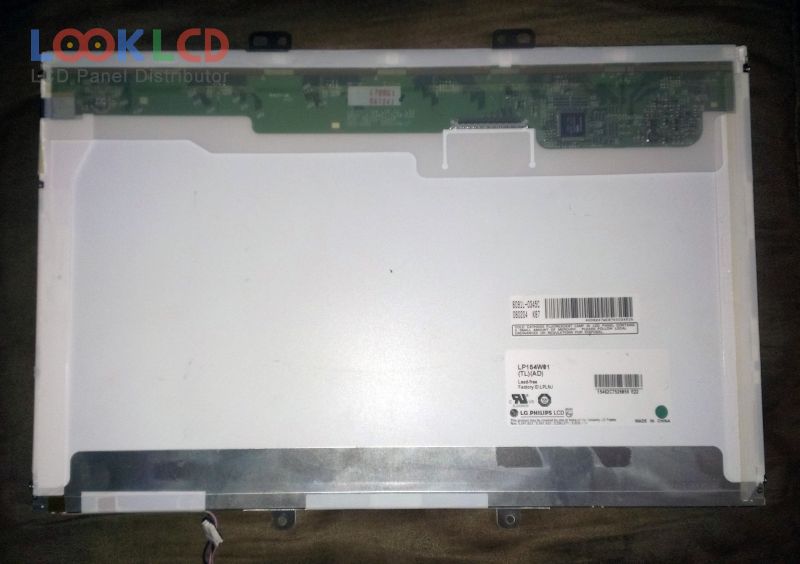

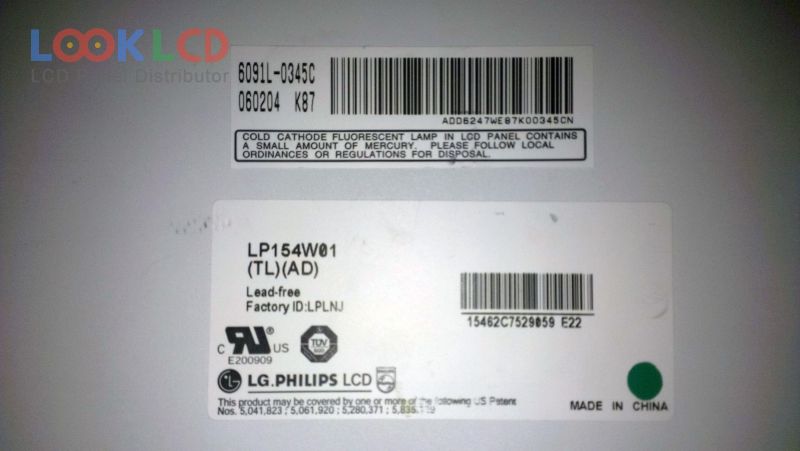

| Varenummer | LP154W01-TLAD |
| Mærke | LG Display |
| Størrelse | 15.4 |
| Ansøgning | NBPC |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 170 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP154W01-TLAD 16 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.4 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| omrids | 344×243.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 170 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193145% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
