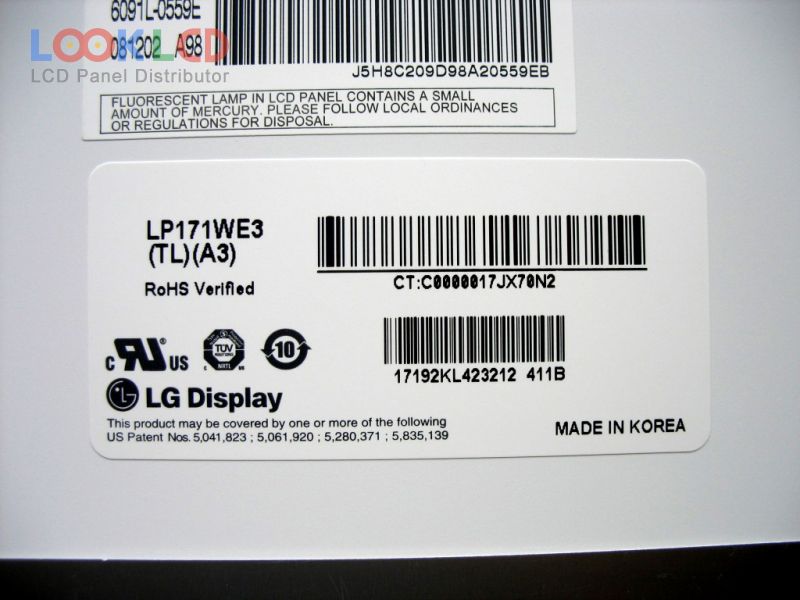

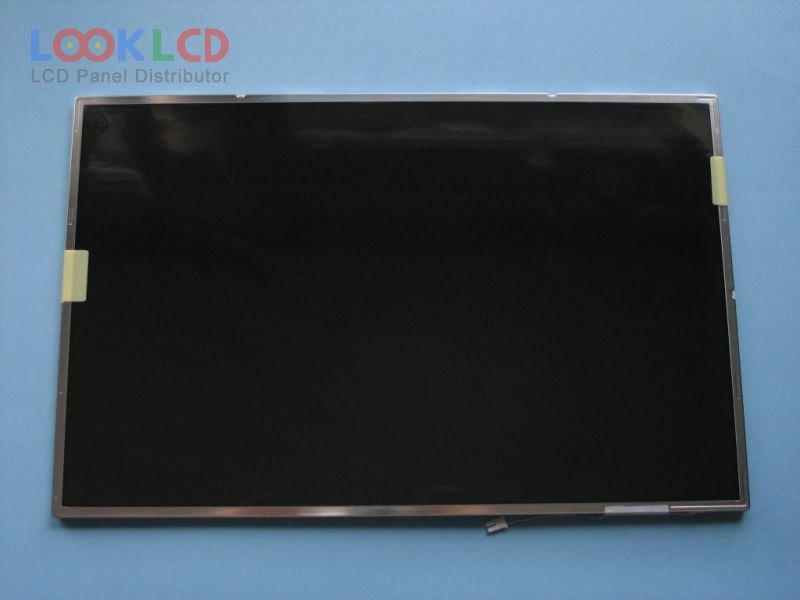

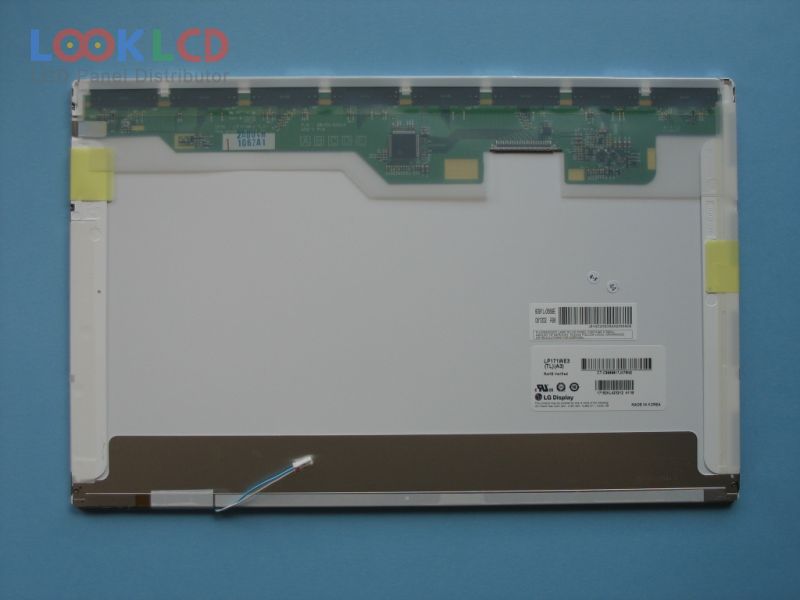

| Varenummer | LP171WE3-TLA3 |
| Mærke | LG Display |
| Størrelse | 17.1 |
| Ansøgning | NBPC |
| Løsning | 1680×1050 |
| Sammensætning | LCM |
| Lysstyrke | 240 |
| CR | 550:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | LG.Philips LCD |
| panel model | LP171WE3-TLA3 2 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 17.1 inch |
| løsning | 1680(RGB)×1050 , WSXGA+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 367.416×229.635 mm |
| omrids | 382.2×244.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 240 cd/m² (Typ.) |
| kontrastforhold | 550:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 16 (Typ.)(Tr+Td) |
| synsvinkel | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (2 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
