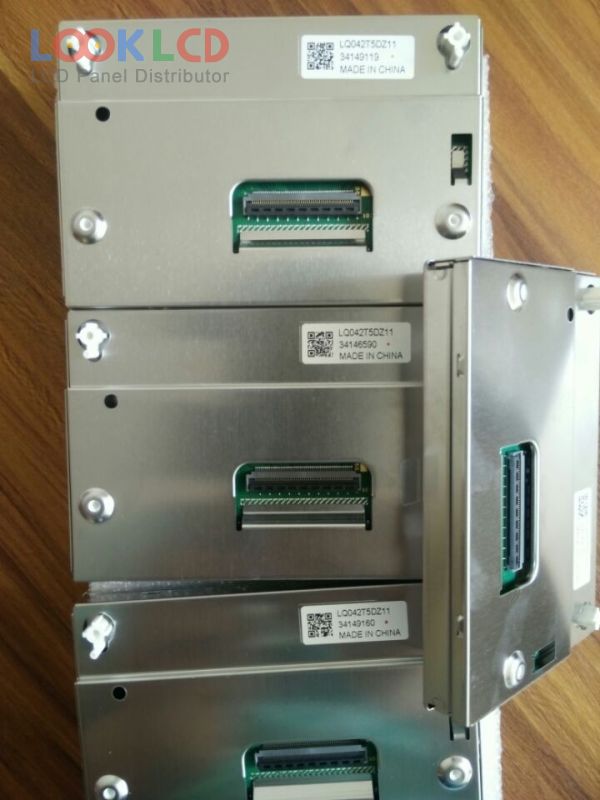

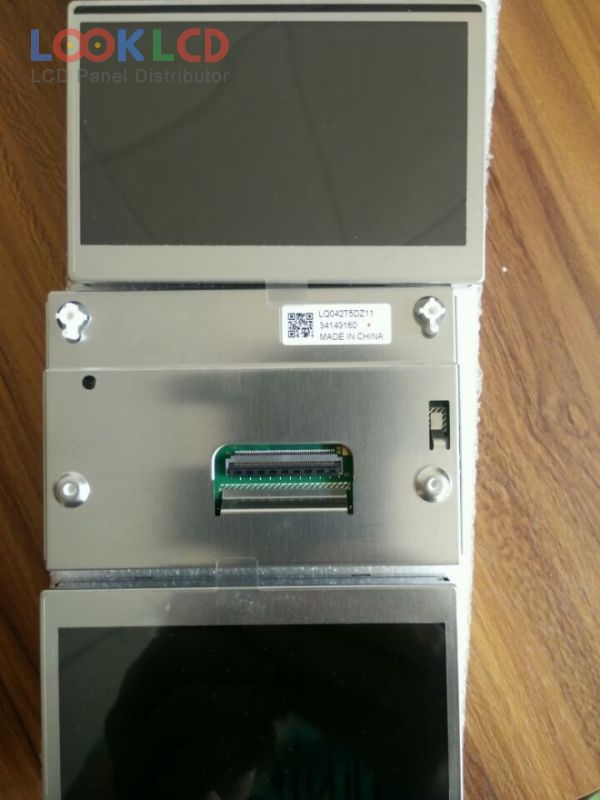

| Varenummer | LQ042T5DZ11 |
| Mærke | SHARP |
| Størrelse | 4.2 |
| Ansøgning | CNS |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 2000:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ042T5DZ11 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.2 inch |
| løsning | 480×272(RGB) , WQVGA |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 92.88×52.632 mm |
| omrids | 102.5×69 mm |
| overflade | Antiglare, Reflection 1.5% (Typ.) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 2000:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193164% |
| responstid | 15/5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | CMOS (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| C070VW03 V0 | AUO | 7.0 | 800×480 |
| CLAA080LJ01CW | CPT | 8.0 | 800×480 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LA058WQ1-SD01 | LG Display | 5.8 | 400×240 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| YX-CM043-QN05-56 | 4.3 | 480×272 |
