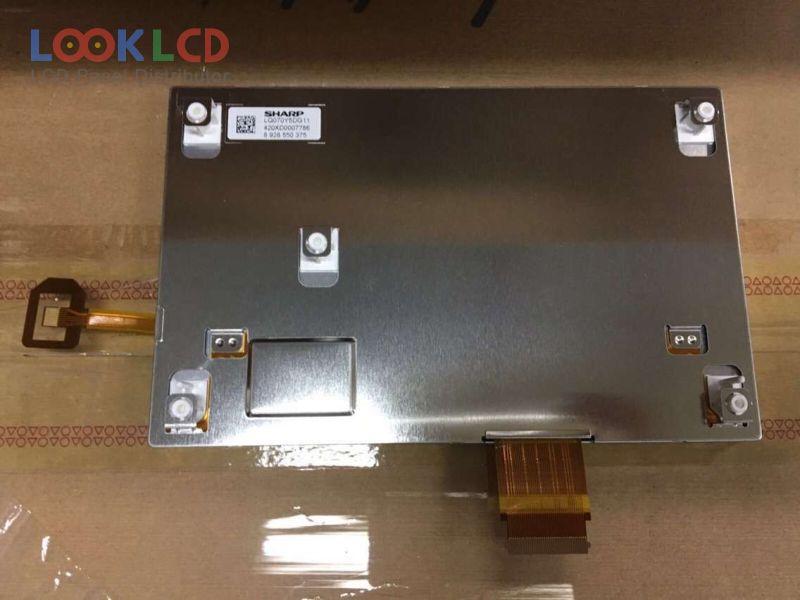

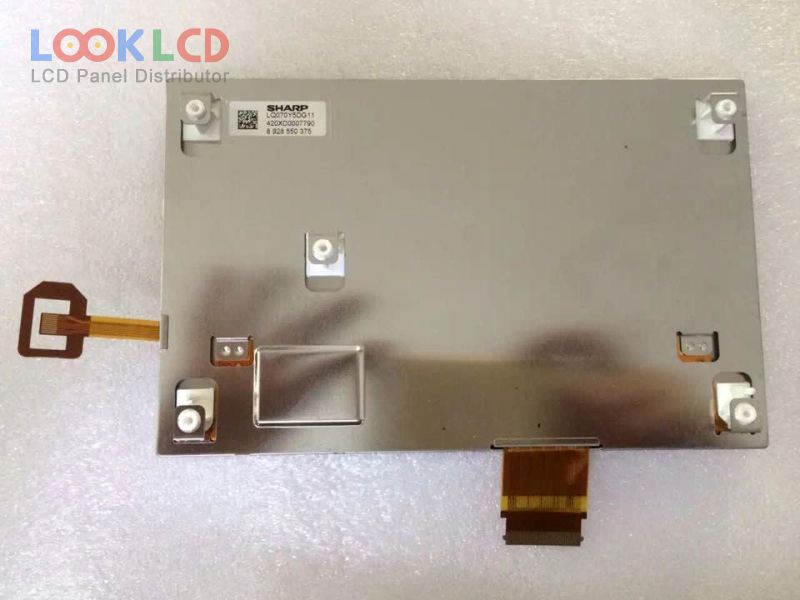

| Varenummer | LQ070Y5DG11 |
| Mærke | SHARP |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ070Y5DG11 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| overflade | Antiglare |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| frekvens | 60Hz |
| lampe type | WLED |
| signal interface | CMOS (1 ch, 6-bit) |
| Ansøgning | CNS |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG05 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| C030DW01 V0 | AUO | 3.0 | 320×240 |
| C035QVN01.0 | AUO | 3.5 | 240×320 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| L5F30369P01 | SANYO | 6.5 | 800×480 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| NL3224AC35-01 | NLT | 5.5 | 320×240 |
| TM060RDH01 | Tianma | 6.0 | 800×480 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
