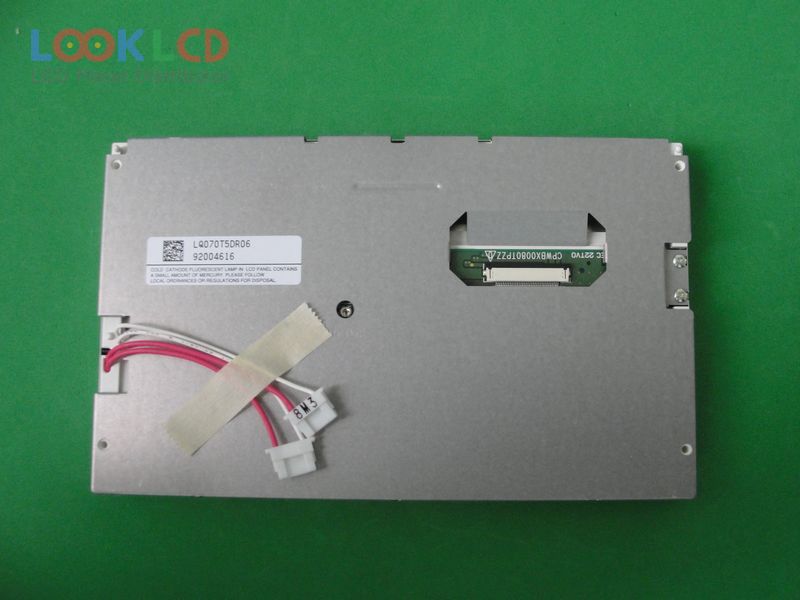

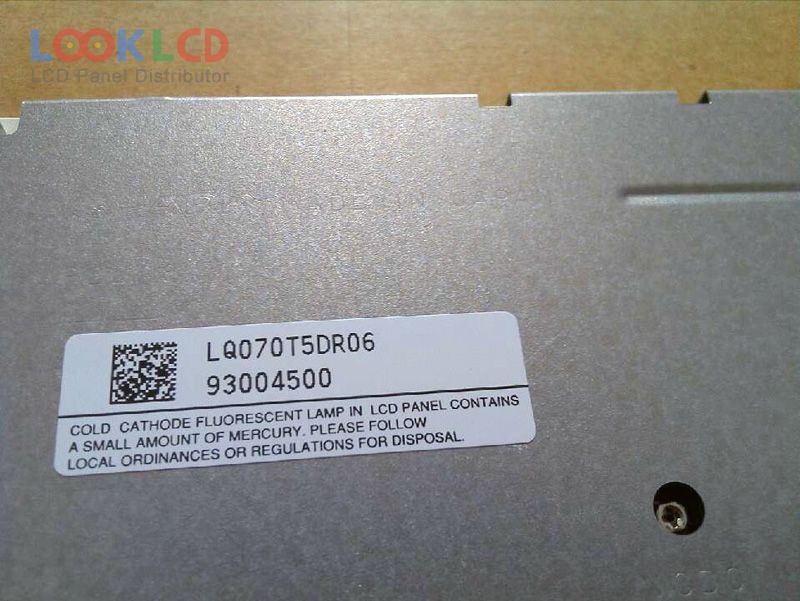

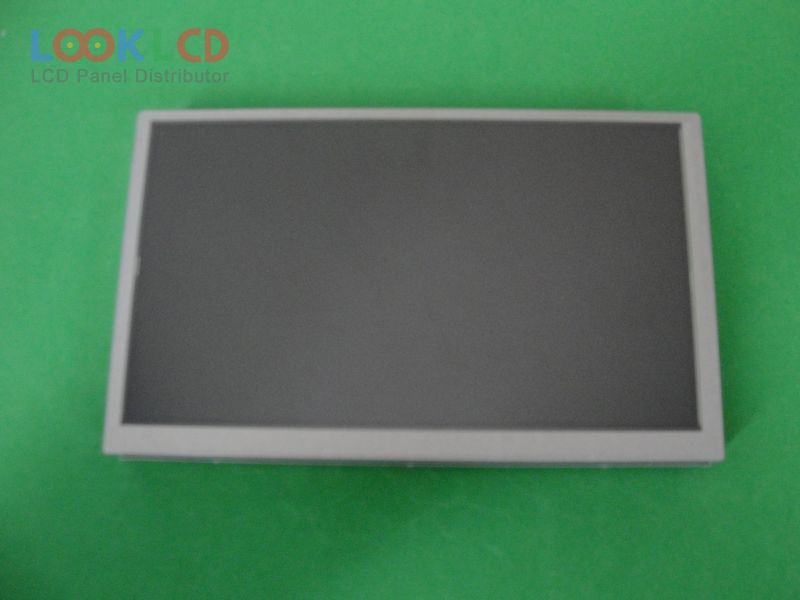

| Varenummer | LQ070T5DR06 |
| Mærke | SHARP |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 480×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 100:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ070T5DR06 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 480(RGB)×240 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.08×87 mm |
| omrids | 170.1×103.4 mm |
| overflade | Antiglare, Antireflection |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 100:1 (Min.) |
| vise farver | 262K (6-bit) |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 36 pins |
| indgangsspænding | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| rohs: | |
| Ansøgning | CNS |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5DG01 | SHARP | 7.0 | 854×480 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG05 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| LQ070Y5DR04 | SHARP | 7.0 | 800×480 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| LQ065T5AR05 | SHARP | 6.5 | 400×234 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| TX31D16VM2BAA | KOE | 12.2 | 1024×310 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
