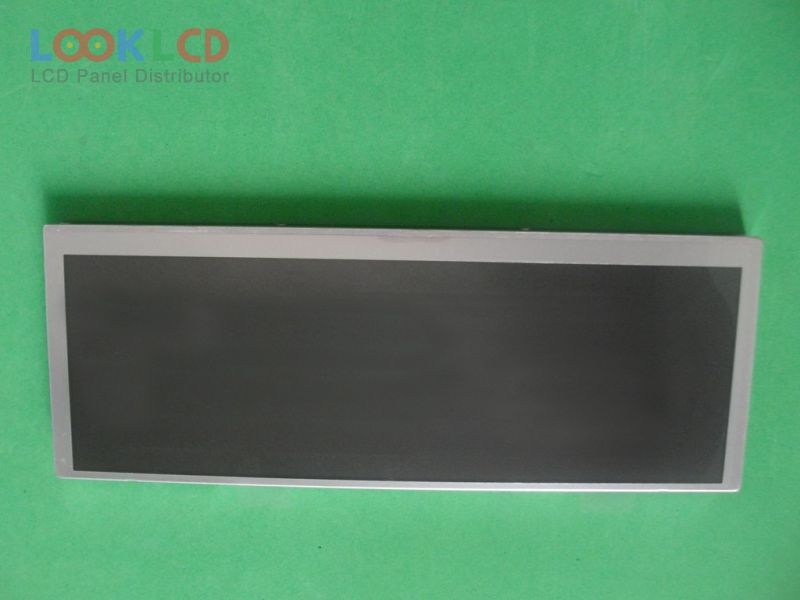

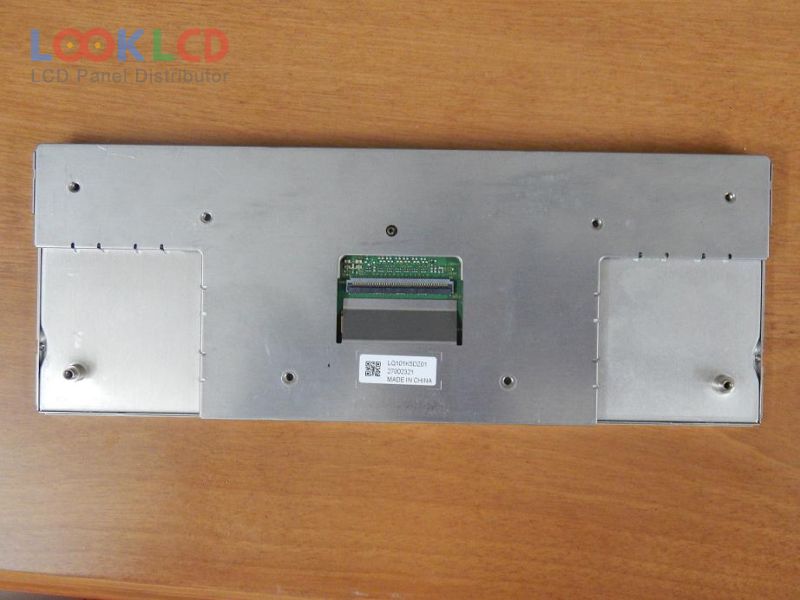

| Varenummer | LQ101K5DZ01 |
| Mærke | SHARP |
| Størrelse | 10.1 |
| Ansøgning | CNS |
| Løsning | 1280×422 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 2000:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ101K5DZ01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×422 |
| visningstilstand | ASV, Normally Black, Transmissive |
| aktivt område | 242.88×80.07 mm |
| omrids | 259.7×96.5 mm |
| overflade | Antiglare, Reflection 1.5% (Typ.) |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 2000:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC) |
| responstid | 15/5 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 8-bit), 68 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
