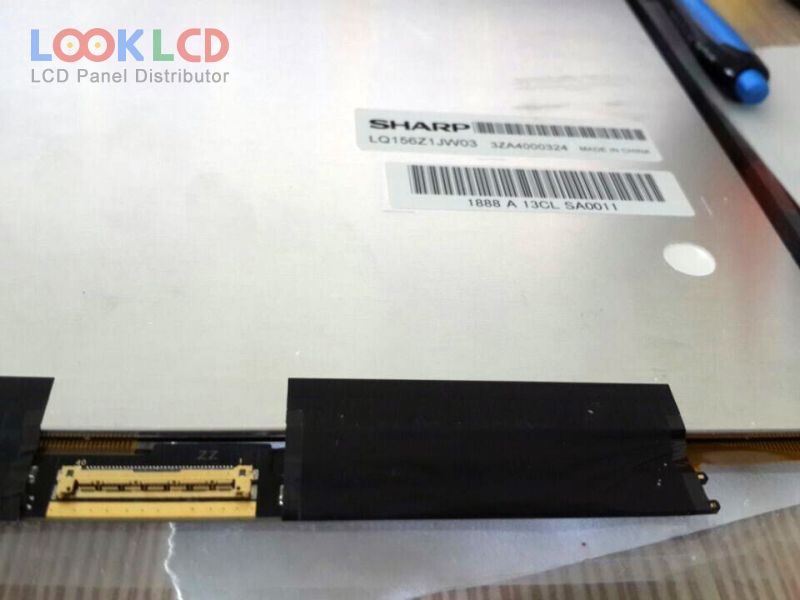

| Varenummer | LQ156Z1JW03 |
| Mærke | SHARP |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 3200×1800 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | SHARP |
| panel model | LQ156Z1JW03 |
| paneltype | IGZO TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 3200(RGB)×1800 , Quad-HD+ |
| visningstilstand | New Mode2, Normally Black, Transmissive |
| aktivt område | 345.6×194.4 mm |
| omrids | 358.12×207.56×2.9 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare (Haze 42%) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP156WHB-TPA1 | LG Display | 15.6 | 1366×768 |
| LQ156D1JW02 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JW04 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX01 | SHARP | 15.6 | 3840×2160 |
| LQ156D1JX03 | SHARP | 15.6 | 3840×2160 |
| LQ156M1LG21 | SHARP | 15.6 | 1920×1080 |
| LQ156M3LW01 | SHARP | 15.6 | 1920×1080 |
| LQ156T3LW02 | SHARP | 15.6 | 1366×768 |
| LQ156Z1JW03 | SHARP | 15.6 | 3200×1800 |
| B133EW01 V9 | AUO | 13.3 | 1280×800 |
| B173ZAN01.0 | AUO | 17.3 | 3840×2160 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLP3 | LG Display | 14.1 | 1280×800 |
| LTN140AT07-W01 | Samsung | 14.0 | 1366×768 |
| LTN140AT16-401 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-B01 | Samsung | 14.0 | 1366×768 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
