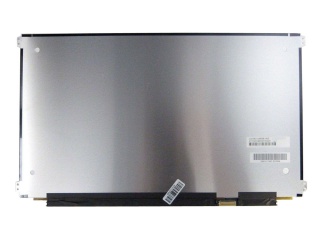

| Varenummer | LQ156Z1JW03B |
| Mærke | Sharp |
| Størrelse | 15.6 |
| Ansøgning | Laptop |
| Løsning | 3200×1800 |
| Sammensætning | LCM , Oxide TFT-LC |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| fabrikant | Sharp |
| skærmstørrelse | 15.6 inch |
| pixel antal | 3200(RGB)×1800 (Quad-HD+) 235PPI |
| aktivt område (mm) | 345.6 × 194.4 (H×V) |
| rammeareal (mm) | - |
| luminans | 300 cd/m² (Typ.) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10) |
| god udsigt kl | Symmetry |
| farvedybde | 16.7M 100% sRGB |
| konturform | Slim (PCBA Flat, T≤3.2mm) |
| opdateringshastighed | 60Hz |
| signaltype | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| spændingsforsyning | 3.3V (Typ.) |
| max. vurderinger | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| modelnavn | LQ156Z1JW03B (SHP141C) |
| skærmtype | LCM , Oxide TFT-LCD |
| arrangement | RGB Vertical Stripe |
| omrids (mm) | 367.98 × 218.21 × 2.85 (H×V×D) |
| behandling | Antiglare, Hard coating (3H) |
| kontrastforhold | 1000 : 1 (Typ.) (TM) |
| respons | 25 (Typ.)(Tr+Td) ms |
| arbejdstilstand | New Mode, Normally Black, Transmissive |
| baggrundsbelysning | WLED , With LED Driver |
| anvendes til | Laptop |
| berøringsskærm | Without |
