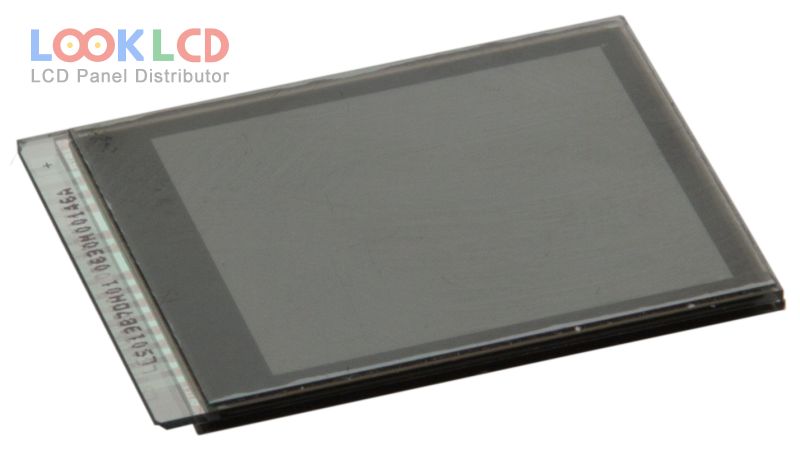

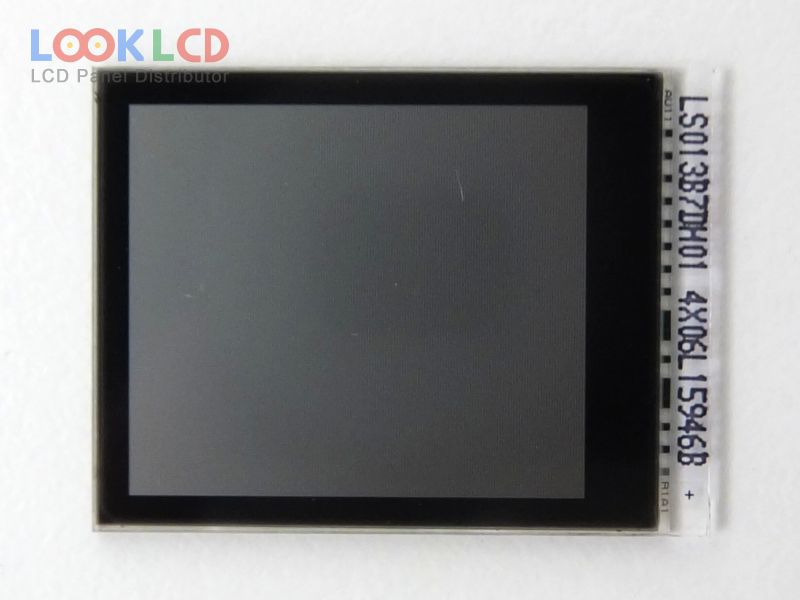

| Varenummer | LS013B7DH01 |
| Mærke | SHARP |
| Størrelse | 1.26 |
| Ansøgning | EPT |
| Løsning | 144×168 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | SPI |
| panel mærke | SHARP |
| panel model | LS013B7DH01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 1.26 inch |
| løsning | 144×168 |
| visningstilstand | Transflective |
| aktivt område | 20.88×24.36 mm |
| omrids | 24.88×33×1.75 mm |
| overflade | Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 20:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | No B/L |
| signal interface | SPI, 14 pins |
| indgangsspænding | 5.0/5.0V (Typ.)(VDD/VDDA) |
| Ansøgning | EPT |
