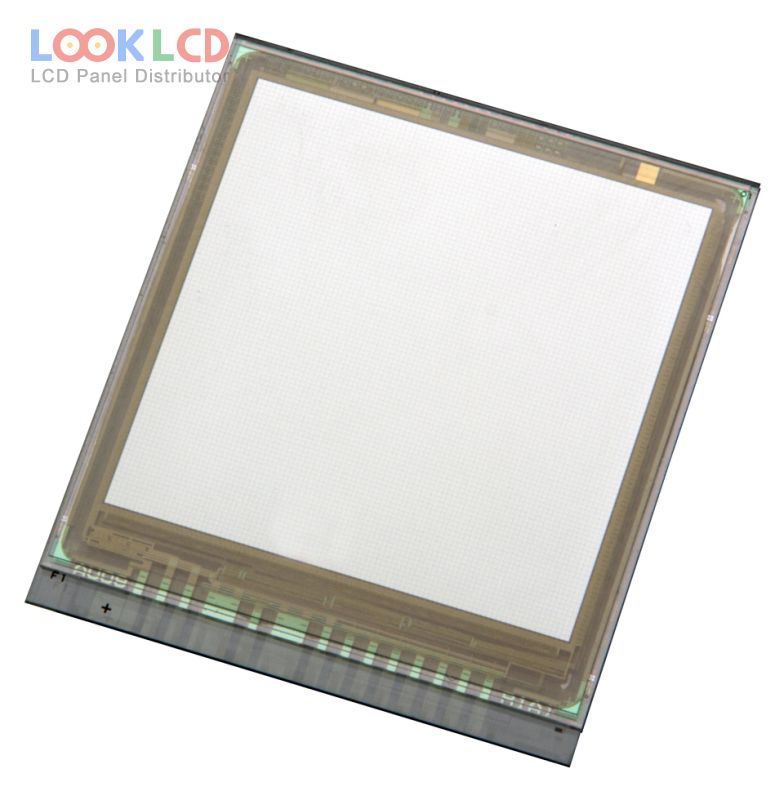

| Varenummer | LS013B4DN01 |
| Mærke | SHARP |
| Størrelse | 1.35 |
| Ansøgning | |
| Løsning | 96×96 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | SPI |
| panel mærke | SHARP |
| panel model | LS013B4DN01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 1.35 inch |
| løsning | 96×96 |
| visningstilstand | PNLC, Reflective |
| aktivt område | 24.192×24.192 mm |
| omrids | 28.2×32.34 mm |
| overflade | Without Polarizer, Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 10:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| responstid | 50/50 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/60 (Min.)(CR≥2)(L/R/U/D) |
| lampe type | No B/L |
| signal interface | SPI, 14 pins |
| indgangsspænding | 5.0/5.0V (Typ.)(VDD/VDDA) |
