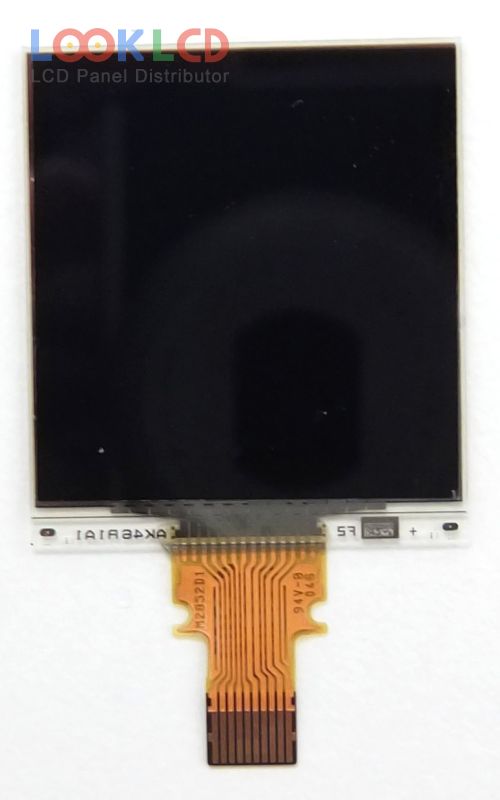

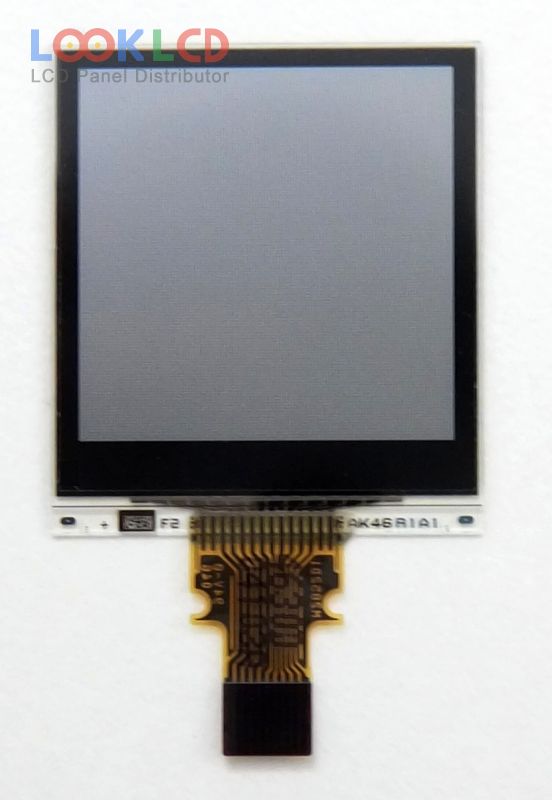

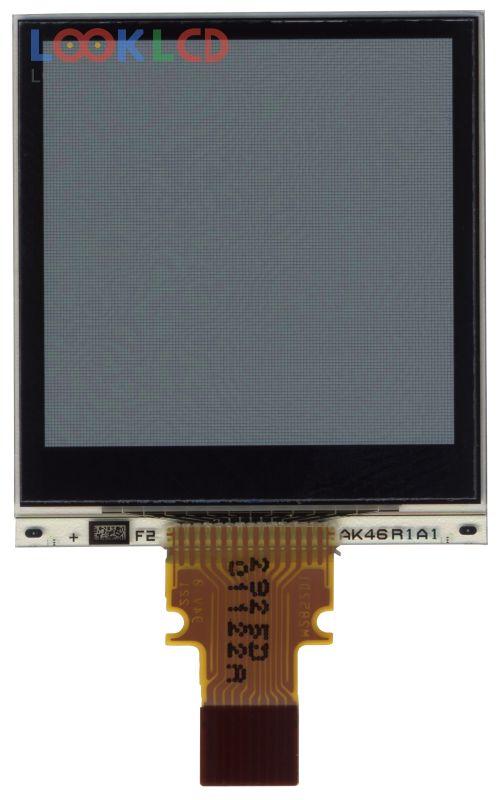

| Varenummer | LS013B7DH03 |
| Mærke | SHARP |
| Størrelse | 1.28 |
| Ansøgning | EPT |
| Løsning | 128×128 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | SPI |
| panel mærke | SHARP |
| panel model | LS013B7DH03 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 1.28 inch |
| løsning | 128×128 |
| visningstilstand | Transflective |
| aktivt område | 23.04×23.04 mm |
| omrids | 26.6×30.3 mm |
| overflade | Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 18:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | No B/L |
| signal interface | 3-wire SPI, 10 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDDA/VDD) |
| Ansøgning | EPT |
| LS013B4DN01 | SHARP | 1.35 | 96×96 |
| LS013B4DN02 | SHARP | 1.35 | 96×96 |
| LS013B4DN04 | SHARP | 1.35 | 96×96 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS013B7DH05 | SHARP | 1.26 | 144×168 |
| LS013B7DH06 | SHARP | 1.33 | 128×128 |
| EG020AS012 | PDI | 2.0 | 200×96 |
| EK014AS014 | PDI | 1.44 | 128×96 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| ET044AS013 | PDI | 4.4 | 400×300 |
| EW074AT012 | PDI | 7.4 | 480×800 |
| EW074BT011 | PDI | 7.4 | 480×800 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS013B7DH01 | SHARP | 1.26 | 144×168 |
| LS013B7DH03 | SHARP | 1.28 | 128×128 |
| LS027B4DH01 | SHARP | 2.7 | 400×240 |
