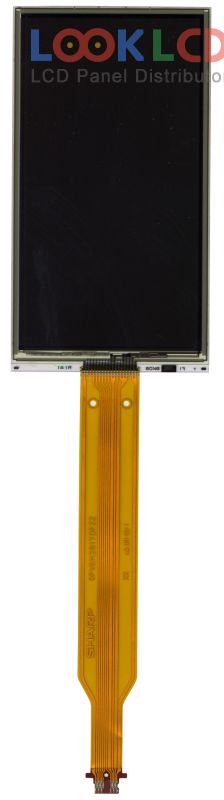

| Varenummer | LS029B4DN01 |
| Mærke | SHARP |
| Størrelse | 2.9 |
| Ansøgning | HHP |
| Løsning | 240×456 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | Monochrome |
| Baggrundsbelysning | No B/L |
| Interface | SPI |
| panel mærke | SHARP |
| panel model | LS029B4DN01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 2.9 inch |
| løsning | 240×456 |
| visningstilstand | PNLC, Reflective |
| aktivt område | 34.8×66.12 mm |
| omrids | 39.6×73.9×0.66 mm |
| overflade | Hard coating (3H) |
| lysstyrke | |
| kontrastforhold | 6:1 (Typ.)(Reflective) |
| vise farver | Monochrome (1-bit) |
| responstid | |
| synsvinkel | 60/60/60/60 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | No B/L |
| signal interface | SPI, 15 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | HHP |
| 24QVF1H | SII | 2.4 | 240×320 |
| 28QVF2J | SII | 2.8 | 240×320 |
| 35HVE1H | SII | 3.5 | 320×480 |
| DLC0090AZG | Other | 0.91 | 80×160 |
| DLC0700WZG | Other | 7.0 | 1200×1920 |
| LQ035Q7DB05 | SHARP | 3.5 | 240×320 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LS029B4DN01 | SHARP | 2.9 | 240×456 |
| LTM035A776C | TOSHIBA | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
