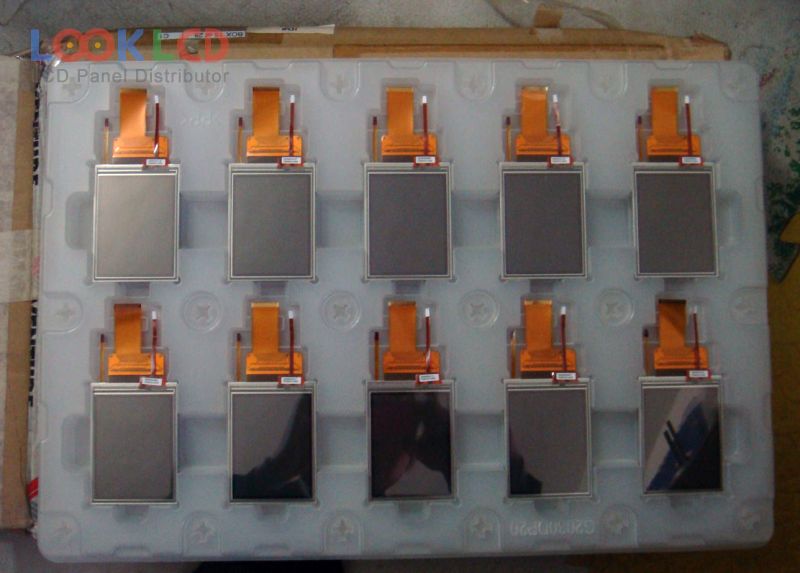

| Varenummer | LS030Q7DH01 |
| Mærke | SHARP |
| Størrelse | 3.0 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 70:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LS030Q7DH01 |
| paneltype | CG-Silicon , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 45.72×60.96 mm |
| omrids | 54.5×75 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 70:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193165% |
| responstid | 30/50 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| lampe type | 5S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 51 pins |
| indgangsspænding | 3.3/5.0/8.0/-4.0/-8.0V (Typ.)(VSHD/VSHA/VDD/VSSD/GVSS) |
| Ansøgning | MPH |
