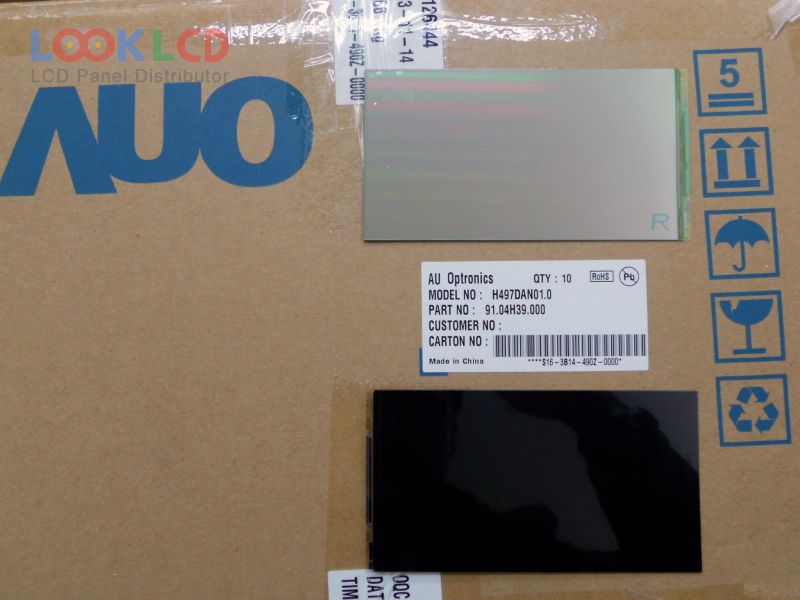

| Varenummer | H497DAN01.0 |
| Mærke | AUO |
| Størrelse | 5.0 |
| Ansøgning | MPH |
| Løsning | 1080×1920 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | |
| panel mærke | AUO |
| panel model | H497DAN01.0 |
| paneltype | LTPS TFT-LCD , CELL |
| panelstørrelse | 5.0 inch |
| løsning | 1080(RGB)×1920 , FHD |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 61.884×110.016 mm |
| omrids | 63.89×117.47×0.576 mm |
| overflade | Hard coating |
| glas dybde | 0.15+0.15 mm |
| transmissivitet | 3.72% (Typ.)(with Polarizer) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193170% |
| responstid | 20/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥100)(L/R/U/D) |
| driver ic | COG Built-in NT35596 |
| Ansøgning | MPH |
