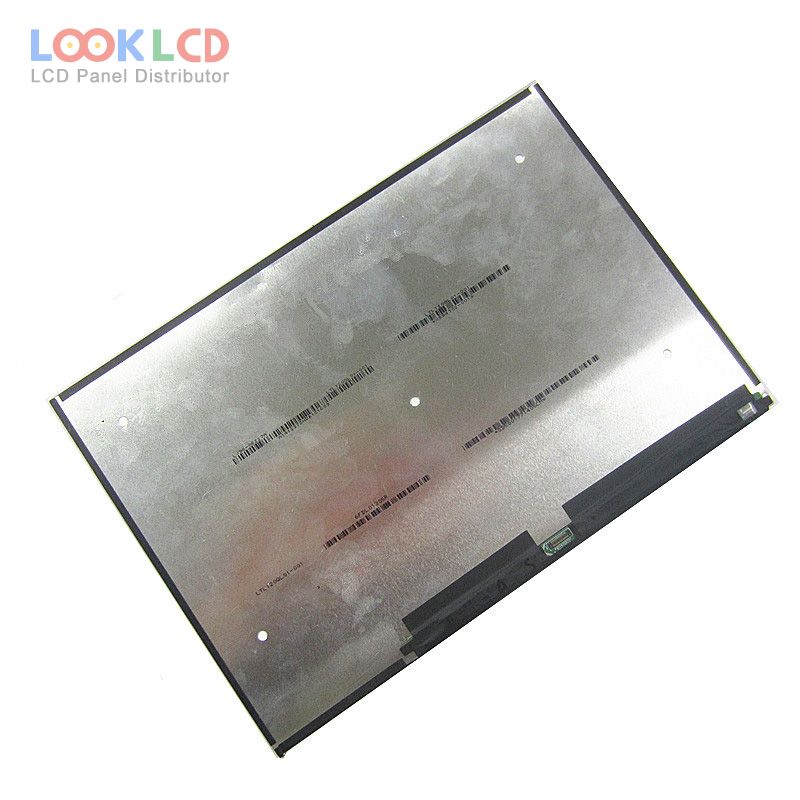

| Varenummer | LTL120QL01-001 |
| Mærke | Samsung |
| Størrelse | 12.0 |
| Ansøgning | PAD |
| Løsning | 2160×1440 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | SAMSUNG |
| panel model | LTL120QL01-001 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.0 inch |
| løsning | 2160(RGB)×1440 |
| visningstilstand | PLS, Normally Black, Transmissive |
| aktivt område | 254.016×169.344 mm |
| omrids | 263.42×182.26×4.29 mm |
| overflade | Glare (Haze 0%), Hard coating (2H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 25/35 (Max.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 9S6PWLEDEmbedded (LED Driver) |
| signal interface | eDP (4 Lanes), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PAD |
