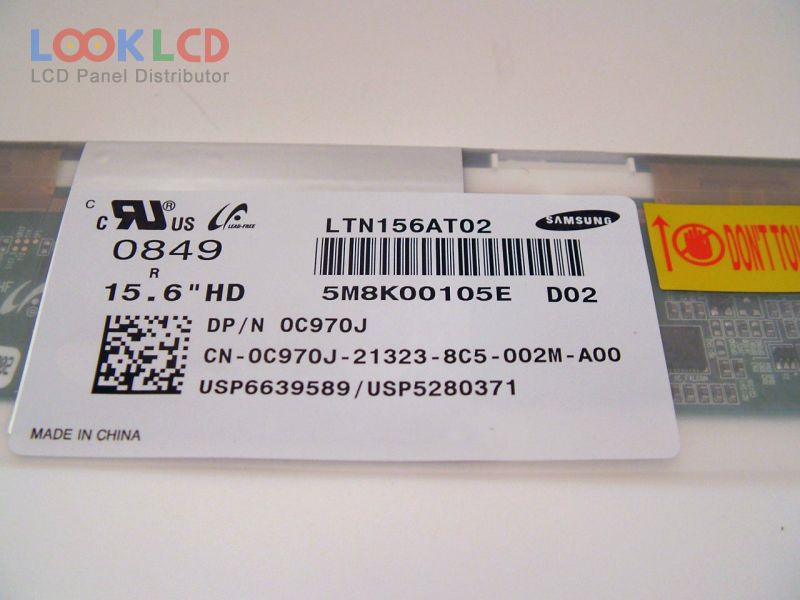

| Varenummer | LTN156AT02-D02 |
| Mærke | Samsung |
| Størrelse | 15.6 |
| Ansøgning | NBPC |
| Løsning | 1366×768 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | SAMSUNG |
| panel model | LTN156AT02-D02 16 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.6 inch |
| løsning | 1366(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| omrids | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Glare (Haze 0%), Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S6PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
