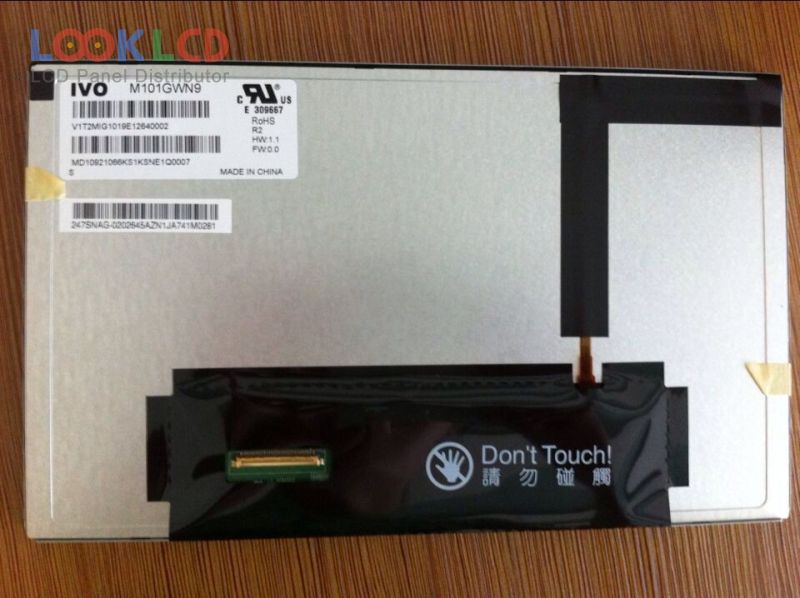

| Varenummer | M101GWN9 R2 |
| Mærke | IVO |
| Størrelse | 10.1 |
| Ansøgning | IA |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | IVO |
| panel model | M101GWN9 R2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 222.72×125.28 mm |
| omrids | 235×143×8.04 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193145% |
| responstid | 6/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| EL640.480-AG1 | Lumineq | 8.1 | 640×480 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| G190ETN01.1 | AUO | 19.0 | 1280×1024 |
| HTW-G320240B2 | Other | 5.7 | 320×240 |
| LJ32H028 | SHARP | 4.7 | 320×240 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| NL8060AC26-52D | NLT | 10.4 | 800×600 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
