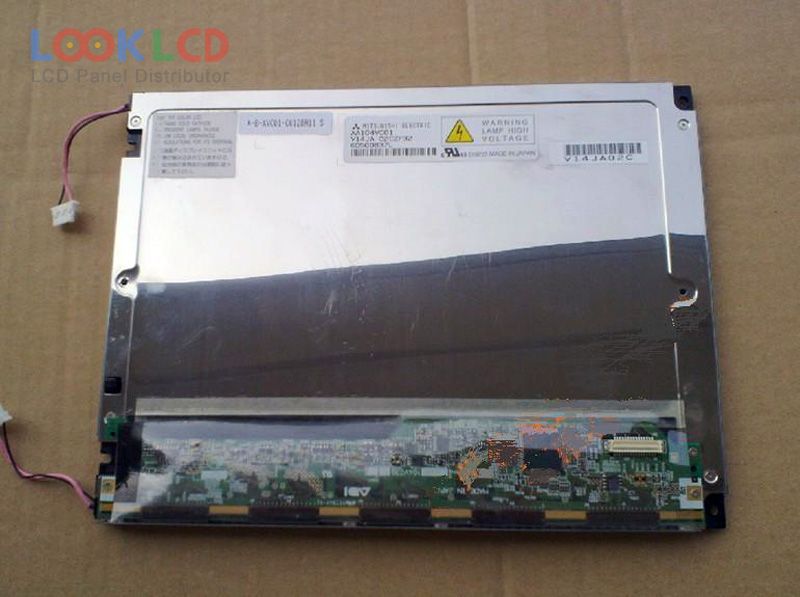

| Varenummer | AA104VC01 |
| Mærke | Mitsubishi |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 430 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Mitsubishi |
| panel model | AA104VC01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 243×181.6×12.7 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 430 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 10/30 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/65/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | CMOS (1 ch, 6-bit), 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| Ansøgning | IA |
| AA104SG01 | Mitsubishi | 10.4 | 800×600 |
| AA104SG04 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02 | Mitsubishi | 10.4 | 800×600 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA104VC04 | Mitsubishi | 10.4 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA104VH01 | Mitsubishi | 10.4 | 640×480 |
| AA104XD02 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| AA170EC01 | Mitsubishi | 17.0 | 1280×1024 |
| G101AGE-L01 | Innolux | 10.1 | 800×600 |
| KCS057QV1AJ-G20 | Kyocera | 5.7 | 320×240 |
| LM240WU8-SLA2 | LG Display | 24.0 | 1920×1200 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ104V1DG61 | SHARP | 10.4 | 640×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| TFD60W12 | TOSHIBA | 6.0 | 320×234 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
