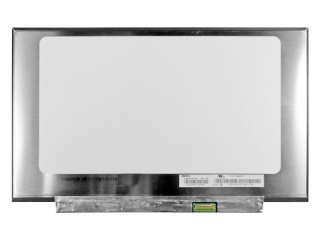

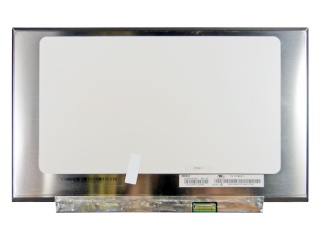

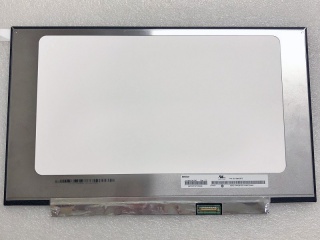

| Varenummer | N140HCA-EAC Rev.C2 |
| Mærke | Innolux |
| Størrelse | 14.0 |
| Ansøgning | Laptop Industrial |
| Løsning | 1920×1080 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| mærke | Innolux |
| model | N140HCA-EAC Rev.C2 (CMN14D4) |
| diagonal størrelse | 14.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1920(RGB)×1080 [FHD] 157PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 309.31(H)×173.99(V) mm |
| omrids dim. | 315.81(H)×197.47(V) ×3(D) mm |
| bezel område | - |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 250 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 14/11 (Typ.)(Tr/Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10) |
| driftstilstand | AAS, Normally Black, Transmissive |
| støtte farve | 262K 45% NTSC |
| lyskilde | WLED , 15K hours , With LED Driver |
| form stil | Slim (PCBA Flat, T≤3.2mm) |
| designet til | Laptop Industrial |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
