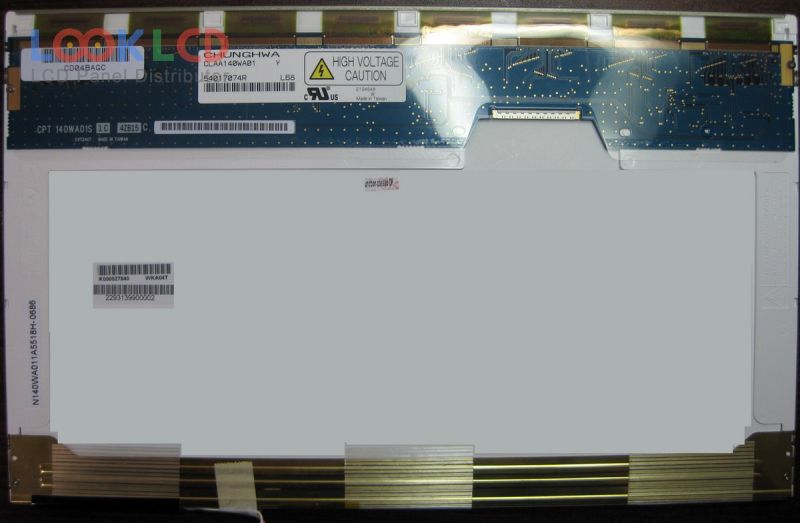

| Varenummer | CLAA140WA01 |
| Mærke | CPT |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1280×768 |
| Sammensætning | LCM |
| Lysstyrke | 185 |
| CR | 350:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA140WA01 1 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1280(RGB)×768 , WXGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 305.28×183.168 mm |
| omrids | 320×199×5.7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 185 cd/m² (Typ.) |
| kontrastforhold | 350:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 9/16 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| CLAA101WA01A | CPT | 10.1 | 1366×768 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| CLAA140WA01 | CPT | 14.0 | 1280×768 |
| CLAA150PB03 | CPT | 15.0 | 1400×1050 |
| CLAA150XP03 | CPT | 15.0 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WP05A | CPT | 15.4 | 1440×900 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| B125HAN02.0 | AUO | 12.5 | 1920×1080 |
| B150XG01 V7 | AUO | 15.0 | 1024×768 |
| B170PW03 V4 | AUO | 17.0 | 1440×900 |
| CLAA156WB11A | CPT | 15.6 | 1366×768 |
| LP140WF1-SPU1 | LG Display | 14.0 | 1920×1080 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LP154WX4-TLC3 | LG Display | 15.4 | 1280×800 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN150PF-L04 | Samsung | 15.0 | 1400×1050 |
