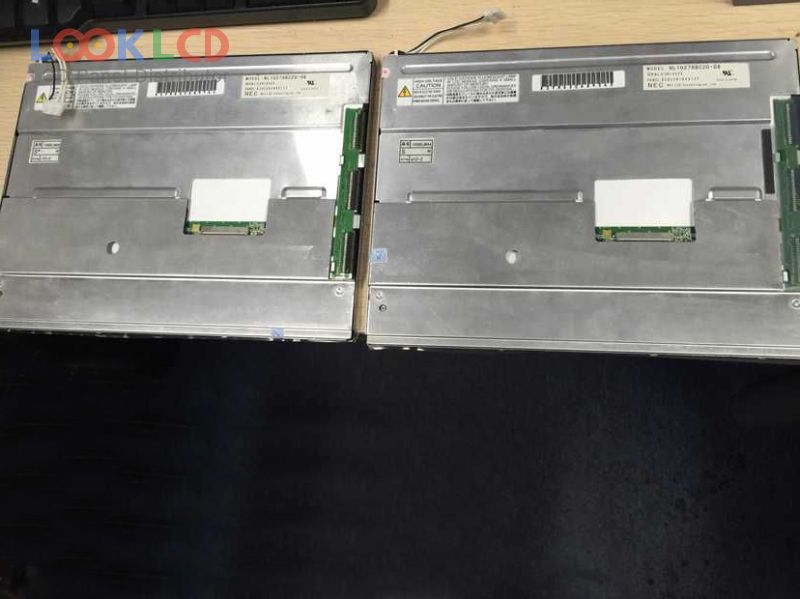

| Varenummer | NL10276BC20-08 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 700:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276BC20-08 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | SA-SFT, Normally Black, Transmissive |
| aktivt område | 210.4×157.8 mm |
| omrids | 227×174.5 mm |
| overflade | Clear, Hard coating (3H) |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 13/12 (Typ.)(Tr/Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276BC13-01C | NLT | 6.5 | 1024×768 |
| NL10276BC16-06D | NLT | 8.4 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| NL10276BC30-18C | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| DLC1210BBG | Other | 12.1 | 800×600 |
| G150XG03 V1 | AUO | 15.0 | 1024×768 |
| LB064V02-A1 | LG Display | 6.4 | 640×480 |
| LLB121ST01 | Samsung | 12.1 | 800×600 |
| LM9V385 | SHARP | 9.4 | 640×480 |
| RGS16128064YR000 | RiTdisplay | 1.6 | 128×64 |
| TM057KDHG03 | Tianma | 5.7 | 320×240 |
| TM100SV-A01-01 | SANYO | 10.0 | 800×600 |
| TX18D37VM0ARA | KOE | 7.0 | 800×480 |
| UMSH-8065MD-11T | Other | 3.5 | 320×240 |
