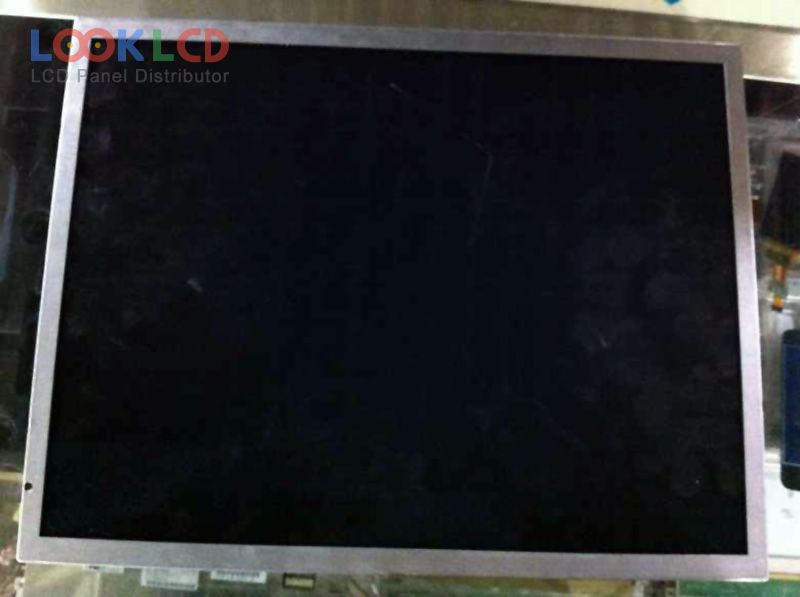

| Varenummer | NL10276BC30-18C |
| Mærke | NLT |
| Størrelse | 15.0 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 600:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276BC30-18C |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 326.5×253.5×17 mm |
| overflade | Clear, Hard coating (2H), Antireflection |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193140% |
| responstid | 4/14 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| rohs: | |
| Ansøgning | IA |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276BC13-01C | NLT | 6.5 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC20-08 | NLT | 10.4 | 1024×768 |
| NL10276BC24-13 | NLT | 12.1 | 1024×768 |
| NL10276BC30-15 | NLT | 15.0 | 1024×768 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL10276BC30-33D | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| G065VN01 V1 | AUO | 6.5 | 640×480 |
| G121AGE-L03 | Innolux | 12.1 | 800×600 |
| KCB104VG2CG-G20 | Kyocera | 10.4 | 640×480 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| LM270WQ1-SLC2 | LG Display | 27.0 | 2560×1440 |
| LM5Q321 | SHARP | 5.0 | 320×240 |
| LTA084C270F | TOSHIBA | 8.4 | 800×600 |
| LTB190E1-L01 | Samsung | 19.0 | 1280×1024 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
