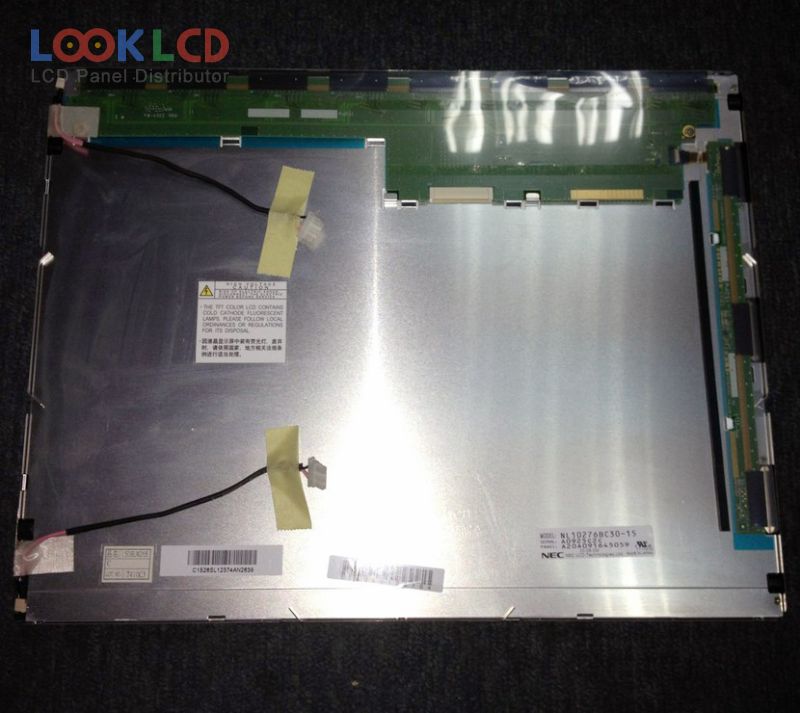

| Varenummer | NL10276BC30-15 |
| Mærke | NLT |
| Størrelse | 15.0 |
| Ansøgning | IA |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 400:1 |
| Farver | 16.7M |
| Baggrundsbelysning | CCFL |
| Interface | LVDS |
| panel mærke | NEC |
| panel model | NL10276BC30-15 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 15.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| omrids | 328×252×11.5 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193160% |
| responstid | 8/17 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
